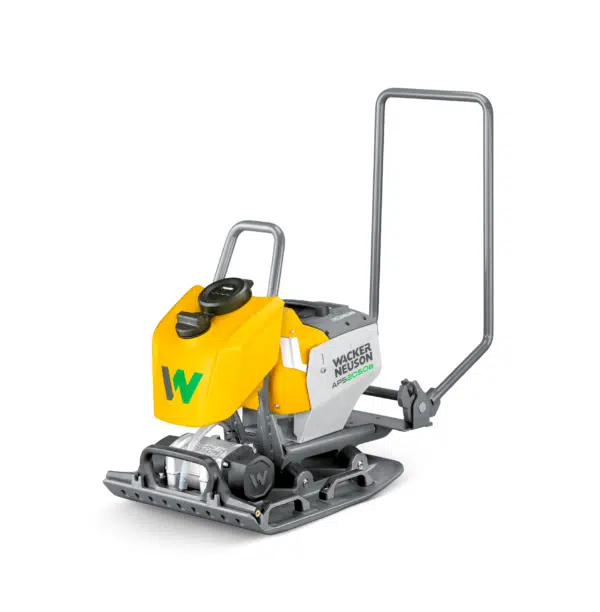

Wacker Neuson Vibration Plate AP2050we 500mm Wide Battery Powered

Wacker Neuson Vibration Plate AP2050we 500mm Wide Battery Powered

Home>Compaction>Single Direction Vibrating Plates - Soil & Paving Compaction>Wacker Neuson Vibration Plate AP2050we 500mm Wide Battery Powered
SKU 5100061222 Categories ,

Technical Specifications

– Operating weight: 92.1 kg
– Nominal power: 1.2 kW
– Nominal Voltage: 51 V
– Centrifugal force: 20 kN
– Operating width: 500 mm
– Surface capacity: 750m²/h
– Battery runtime: 90 min (required battery & charger sold separately)



The APS series is distinguished by its outstanding handling capabilities. Moving and turning these vibratory plates on fresh asphalt is unsurpassed in comfort and produces clean finishes with no marks. Even clean finishes at curbs are easy to produce due to the angular side edges of the base plate. The guide handle responds precisely to steering movements while still achieving low hand-arm vibrations of less than 5 m/s², which makes long and comfortable working conditions possible. Because of the direct drive, the APS series does not require V-belts and is therefore maintenance-free.

Battery driven machines start by the push of a button

Starts with a push of a button

  • The battery can be started easily and reliably with the push of a button, even at low temperatures or at altitudes.
  • Starting with the push of a button is much more convenient than starting with pulling a cable.
Electric motor battery-operated plate AP2560e

Maintenance-free electric motor

  • Maintenance work is completely eliminated compared to combustion engines For example, there are no problems with dirt accumulation or inferior oil. This significantly reduces maintenance effort and costs over the long service life of the machine.
Battery change battery-operated plate AP1840e AP1850e

Removable battery

  • The battery can be easily removed without tools and used in another machine. This makes it quick and easy to use a single battery for serveral machines on the construction site.
  • It is possible to swap a discharged battery for a charged one very easily and quickly on the construction site.
Handle Single Direction Vibratory Plate

Base plate optimized for perfect work results

  • The side edges of the base plate are angled in front and rounded in the rear for precise work along curbs. The beveled and narrowing shape prevents tracks from being created in the fresh asphalt when turning the machine. This shape makes it easy to produce high-quality, smooth asphalt surfaces.
Electric vibratory plates APS - 10-20 kN

Excellent turning ability and control with simultaneously low HAV

  • The guide handle responds precisely to steering movements while simultaneously reducing hand-arm vibrations to the greatest extent possible. This way, the vibratory plate can be controlled comfortably with little effort.
  • Turning and steering movements are transferred very easily to the machine. This makes work quick and comfortable.

More Features

Illustration ecology zero emission

No exhaust emissions

  • The operator is not exposed to any exhaust emissions. Therefore, the machine can be used without restrictions in trenches, tunnels and interior spaces. For the operator, work becomes more pleasant and healthy than with fuel-operated machines.
  • Because the machines are emission-free, new applications open up in areas with special requirements for environmental friendliness.
  • Please note that the product range may vary depending on the country. Under certain circumstances, the contents / products shown here may not be available in your country. The illustrations, equipment, and data shown may also differ from the current product range in your country. Optional extras may be shown that are subject to an additional charge. Subject to changes.
