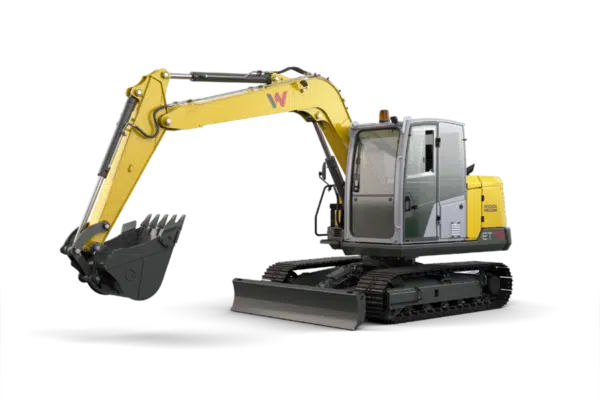

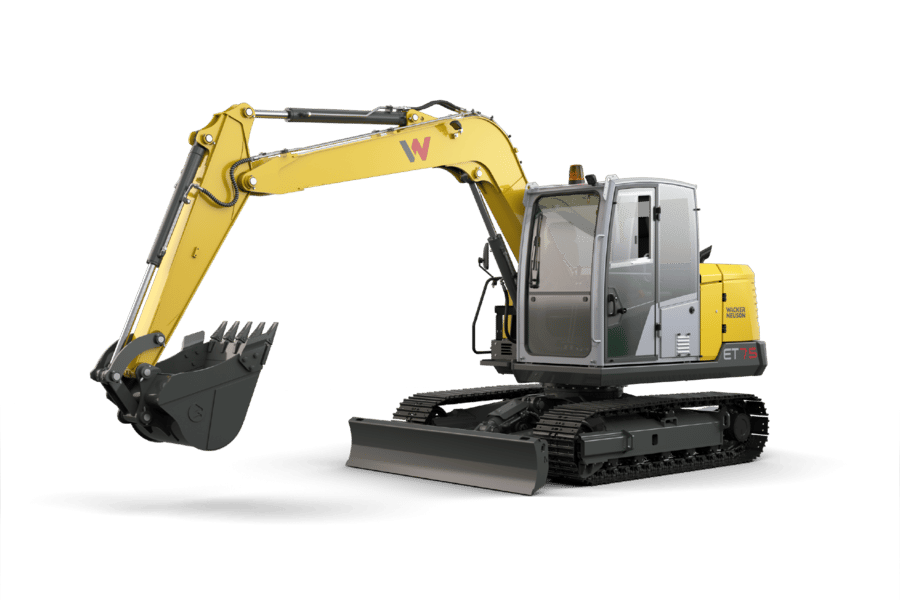

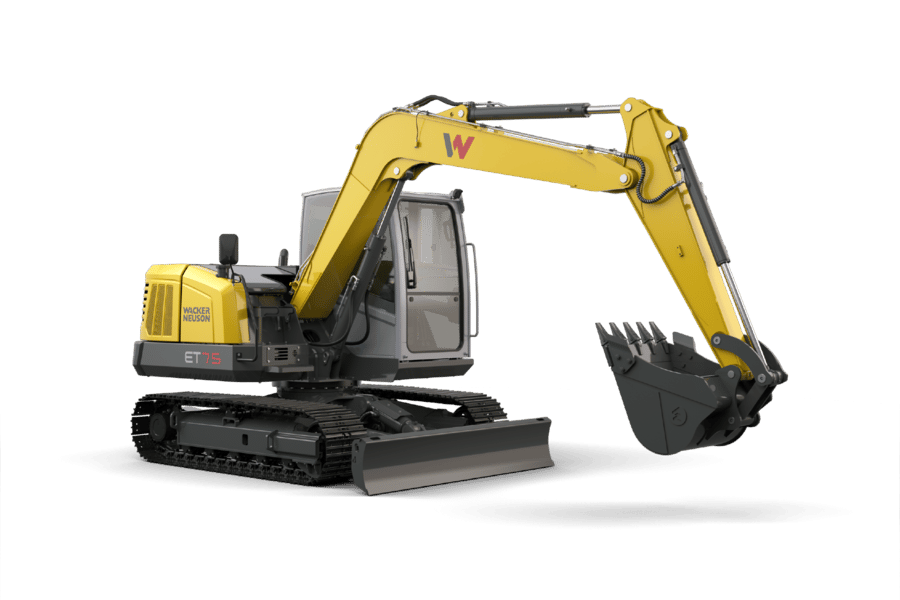

Wacker Neuson Tracked Excavator ET75 with Canopy
Wacker Neuson Tracked Excavator ET75 with Canopy
Wacker Neuson Tracked Excavator ET75 with Canopy
Wacker Neuson Tracked Excavator ET75 with Canopy
Wacker Neuson Tracked Excavator ET75 with Canopy
Wacker Neuson Tracked Excavator ET75 with Canopy
Wacker Neuson Tracked Excavator ET75 with Canopy

Wacker Neuson Tracked Excavator ET75 with Canopy

Home>Excavators>Wacker Neuson Tracked Excavator ET75 with Canopy
Request A Quote
SKU 1000390886.01-1 Category Tag

Technical Specifications

MECHANICAL DETAILS
Travel speed stage 12.5 km/hr
Travel speed stage 24.8 km/hr
Length6,270 mm
Operating weight (min.-max.)6,800 – 7,320 kg
Digging depth (max.)4,097 mm
Width2,252 mm
Height2,559 mm
ENGINE
Cylinder capacity3,054 cm3
Tank capacity145 L
Operating power35.9 KW
Operating Engine speed2,000 rpm
Starter battery Voltage12.0 V
Battery capacity (nom. value)120 Ah
Engine typeDiesel engine
ManufacturerYanmar
Engine designation4TNV94L-ZWWN
HYDRAULICS
Operating pressure hydraulics285 bar
Flow rate144 L/min
Tank capacity96 L
OPERATING FLUIDS
Cooling fluid volume10 L
Hydraulic fluid volume105 L
CHASSIS
Operating pressure hydraulics285 bar
Drive unitAxial piston motor with RGU
SHIPPING & STORAGE
Length for shipping6,270 mm
Width for shipping2,252 mm
Height for shipping2,559 mm
Shipping weight6,615 kg

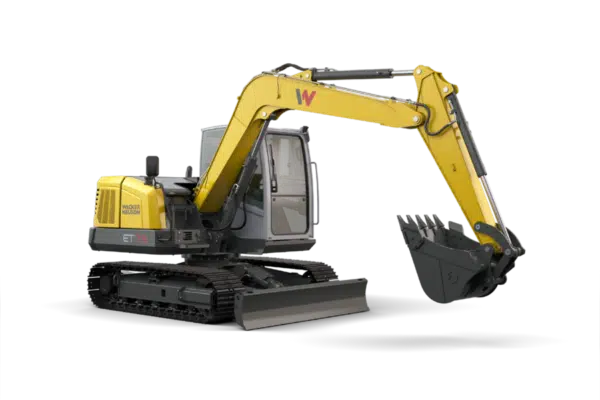

Tracked Conventional Excavator ET75: durable and powerful

Constructed of high-grade steel and other quality, heavy-duty components for extreme durability. Other impressive features of the ET75 include high stability, increased lift capacity and an optional dozer blade. The large diesel tank allows for longer working times between refueling and ensures better performance.

Powerful drive system with LUDV

Powerful drive system with LUDV

  • The powerful drive system combines with a load-sensing hydraulic system (LUDV) to deliver quick working cycles, greater application flexibility, and easier control for comfortable and fatigue-free operation of the excavator. No matter what the load to be moved, the control movements on the joystick stay the same. Along with increased operating comfort, this results in a performance plus, while simultaneously reducing fuel consumption.
Optimal maintenance Access

Optimal maintenance access

  • The high productivity of our excavators is not just due to the durable technology. Most service work can be completed in a short time due to quick and easily accessible maintenance points.
High degree of digging Power

High degree of digging power

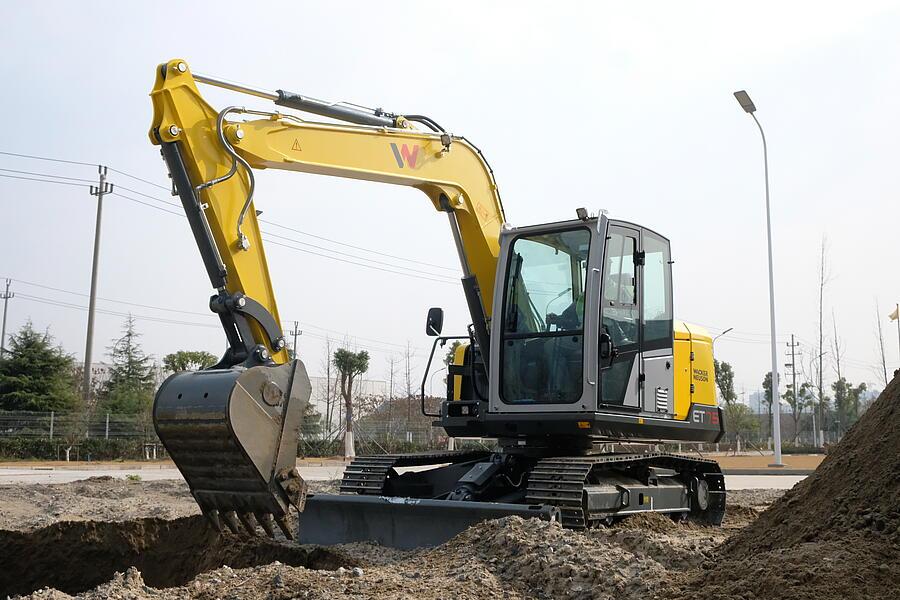

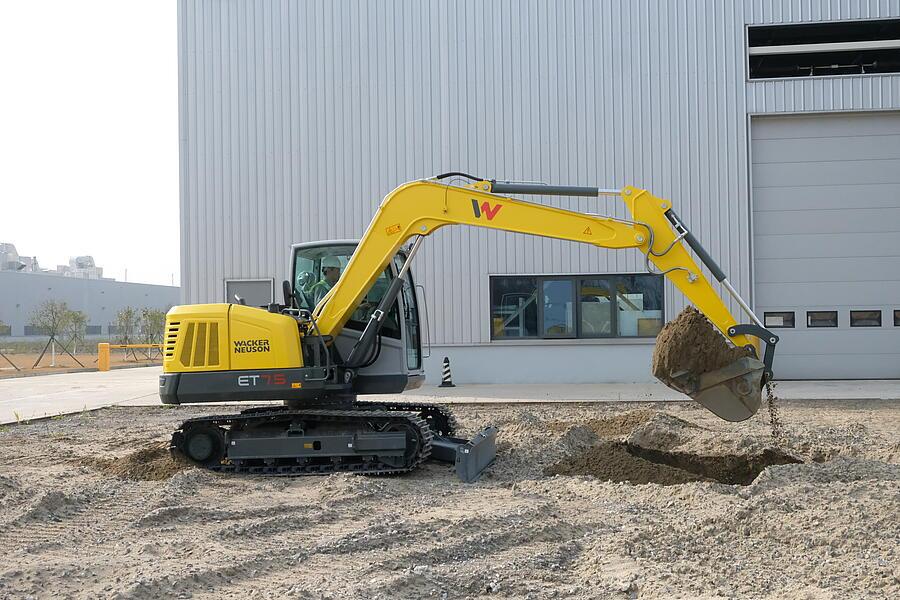

  • Exceptional digging power during excavation work saves time and money.

More Features

2 operating modes

2 operating modes, ECO/POWER

  • The two preset operating modes ECO and POWER differ from each other in engine speed and pump power. They allow easy adjustment of the excavator to the activity to be performed in order to work in the optimal fuel consumption range. In ECO mode, the focus is on economy, while in POWER mode, the focus is on work performance.
High-performance diesel engine

High-performance diesel engine

  • The powerful diesel engine with ECU controller ensures power and performance of the machine in its area of application. Requiring minimal maintenance, it fulfills exhaust emission guidelines with little effort.
