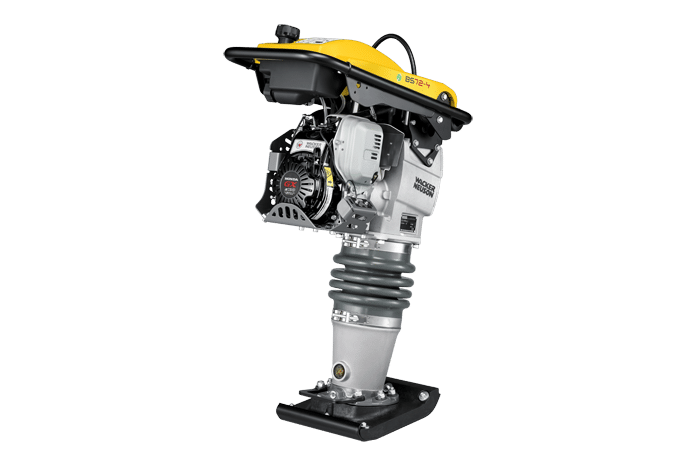

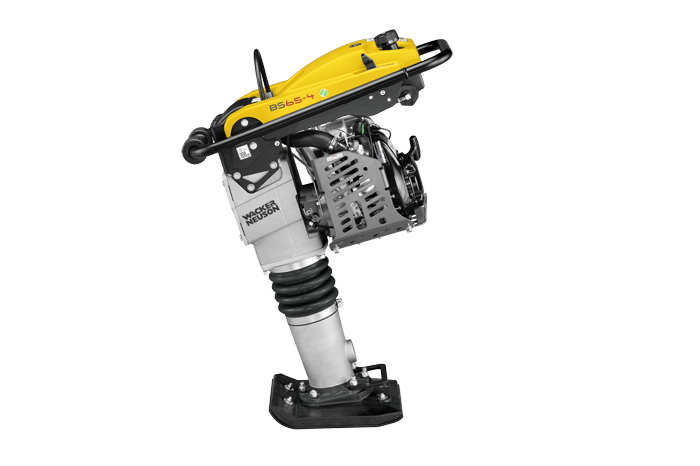

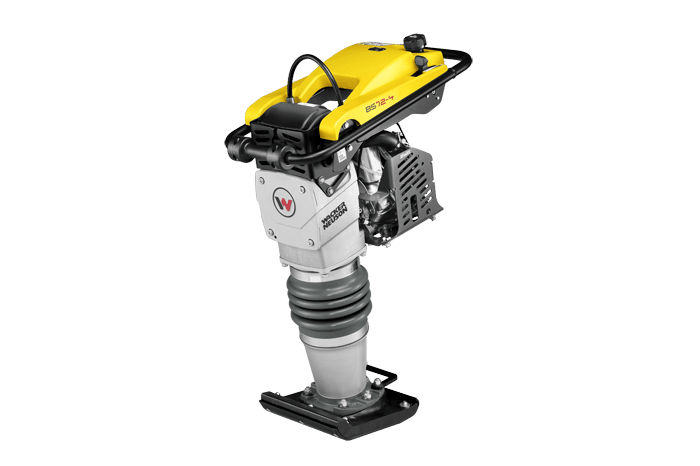

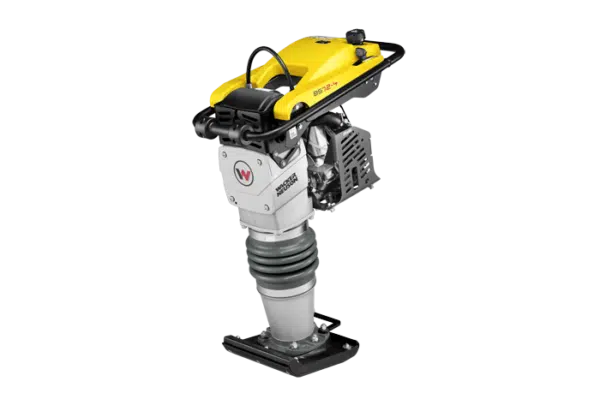

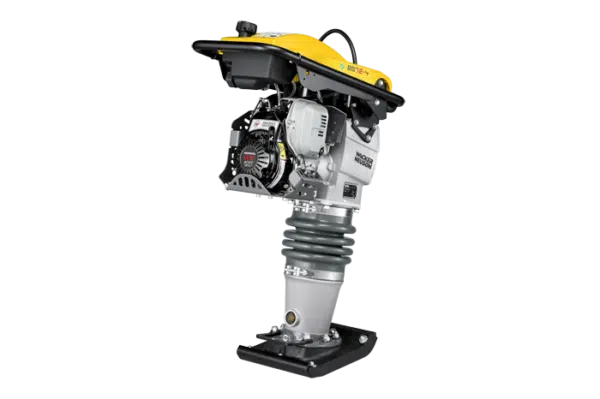

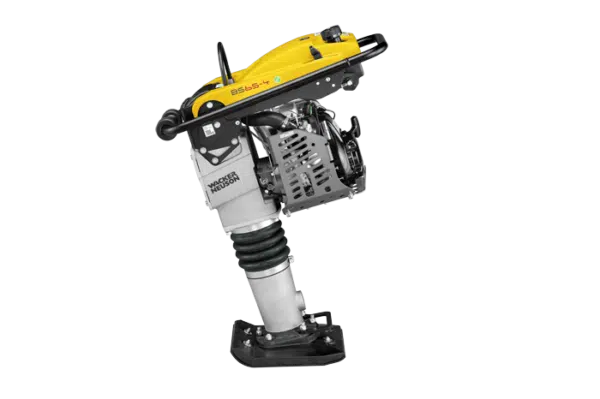

Wacker Nesuson Vibratory Rammer BS65-4As 4-stroke Petrol 65kg
Wacker Neuson’s 4 stroke rammers are classified by an excellent performance which is sustainably convincing. The high stroke energy, high percussion rate and long shoe stroke combined with a fast advance travel achieve excellent compaction results. Well thought-out features make the use of the 4 stroke rammers even more user-friendly, extend the service life and reduce maintenance to a minimum.
– Fast starting due to a small pump to the carburetor
– Strong stroke for heavy, cohesive soils
– Premium air filter ensures an almost dust-free engine operation and provides three times longer change intervals
Operating data | |
| Operating weight | 65 kg |
| Ramming shoe size (WxL) | 280 x 340 mm |
| Dimensions (L x W x H) | 673 x 343 x 940 mm |
| Percussion rate max. | 656 blows/min |
| Stroke on the ramming shoe | 61 mm |
| Impact force | 16 kN |
| Operating speed | 7.1 m/min |
| Surface capacity | 119 m²/h |
Engine / Motor | |
| Engine / Motor type | Air-cooled, single cylinder, 4-stroke gasoline engine |
| Engine / Motor manufacturer | Honda |
| Engine / Motor | GXR 120 |
| Displacement | 121 cm³ |
| Fuel consumption | 1 L/h |
| Rated performance (DIN ISO 3046-1) | 2.7 kW |
| at rpm | 4,100 rpm |
| Fuel tank capacity | 2.9 L |
Comfortable transport
– Large and flexible transport lug
– Easy loading and stowing by transport rollers on the handle
4-stage air filter system
– Very good filter performance thanks to 4-fold air filter (consisting of cyclone filter, paper lamella filter and double foam filter)
– Clean intake air ensures optimum engine performance
– Long service intervals due to high filter capacity

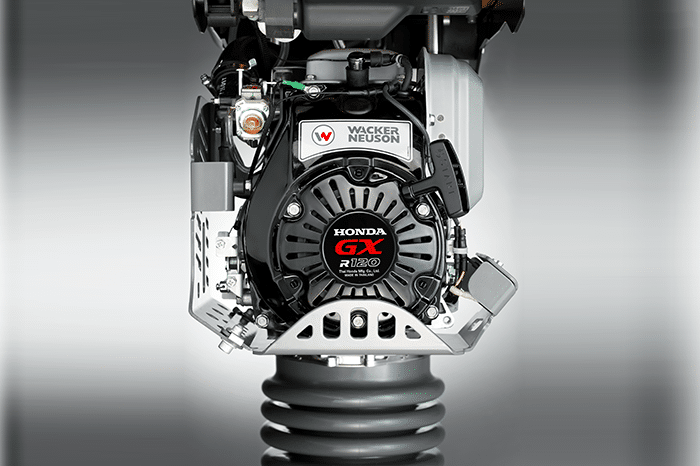

An engine with a strong reserve
The robust GXR 120 engine from Honda operates in normal operation well below its performance limit. This protects the engine and extends its service life.
Comfortable operation
– Only one lever for idling, starting and stopping
