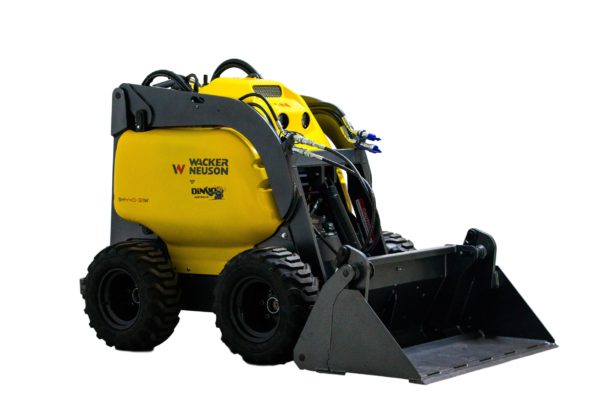

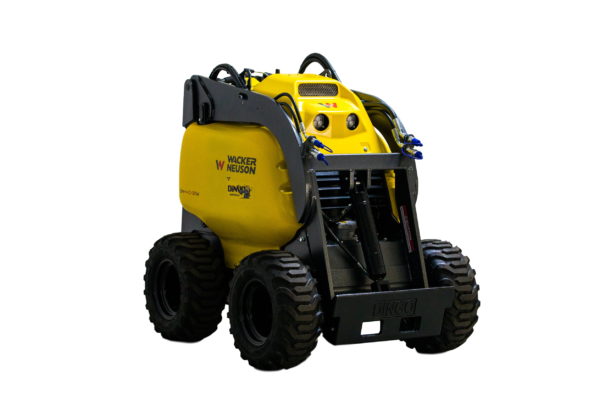

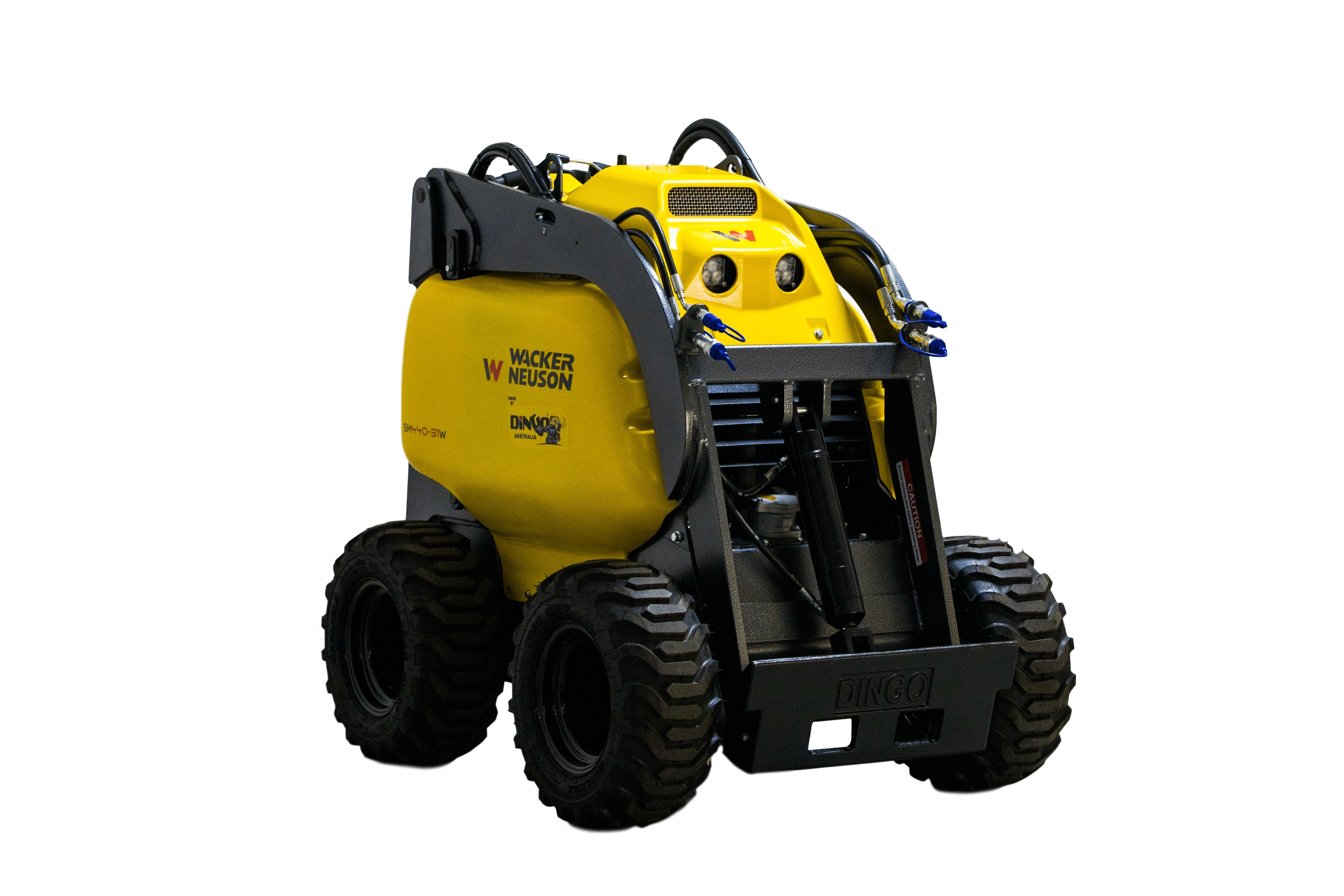

Wacker by Dingo SM440-31W Mini Skid-Steer Loader
Features
– Industry leading 5 year / 5,000 hour warranty.
– All-Wheel-Drive
– The most powerful hydraulic pumps in their class.
– Superior hydraulic design, there is no need for an oil cooler.
– Steel hydraulic piping wherever possible instead of hoses helps keep oil cooler.
– Eliminating 90 degree angles wherever possible helps reduce friction which helps keep oil cooler.
– Uniquely designed Flow Divider to complement the engine and hydraulic pump combination.
– Industry leading service and maintenance access.
– Superior Chassis: 15mm thick solid chassis and main frame.
– Low centre of gravity gives the best ground engagement, turning speed and tractive force.
– Dry bushing technology requires no daily greasing and helps ensure greater machine life.
– Wheeled and tracked machines are available.
Technical Specifications | |
| Engine: | Yanmar 3TNV76 (27hp) |
| Machine mass: | 1,080 kg |
| Rated lift capacity: | 440 kg WLL |
| Pump sizes: | 6, 8.4, 8.4 cc |
| Relief pressure (max.): | 3,400psi / 235bar |
| Hydraulic performance: | 31hp & 73 L/min |
| Hydraulic reservoir capacity: | 76 L |
| Max travel speed: | 9.5 km/h |
Dimensions | |
| Overall dimensions (L x W x H): | 1,600 x 850-1,050 x 1,225 mm |
| Max. operating height (4 in 1 bucket): | 2,675 mm |
| Turning radius with (4 in 1 bucket): | 1,300 mm |
| Angle of departure: | 25 degrees |
| Wheelbase: | 800 mm |
| Ground clearance: | 170 mm |
| Dump height (standard bucket): | 1,550 mm |
| Dump height (4 in 1 bucket): | 1,870 mm |
| Reach fully raised (4 in 1 bucket): | 800 mm |
| Height to hinge pin: | 1,985 mm |
What makes a Wacker Neuson Mini Loader so far beyond the others?
They punch above their weight:
– Best lift to weight ratio
– Up to 440kg SWL / 1080 kg machine & 72 kg operator
– Best turning circle footprint
– Easier to turn a square than a rectangle!
– 180 degree operator access departure
– Operator comfort – hot air drawn away from the operator
– Narrow Access – on the fly with rim change
– Ground speed from power – not wheel circumference
– More Grunt = More power, more push and more lift
– Diesel Triple has the OVERDRIVE feature – get more ground covered and more work done
Attachments aren’t just add-ons:
– The uniquely designed Flow Divider complements the engine and hydraulic pump combination.
– Like a 4wd gearbox – 4wd high to 4wd low – it controls wheels speed in relation to ground conditions and attachment requirements.
– Precisely diverts oil from the wheels to the attachment flow.
– Trenching valves on other brands tend to restrict hydraulic flow (and increase heat). Only a Wacker Neuson mini loader has a true flow diverter with accurate positioning.
– The ultimate power control when using high flow attachments – trenchers, stump grinder, rotary graders & hoes, flail mowers.
