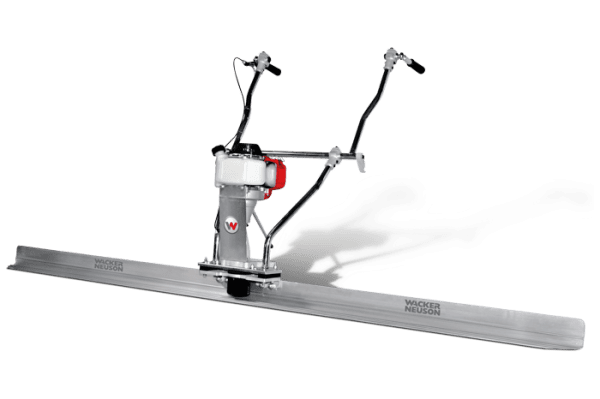

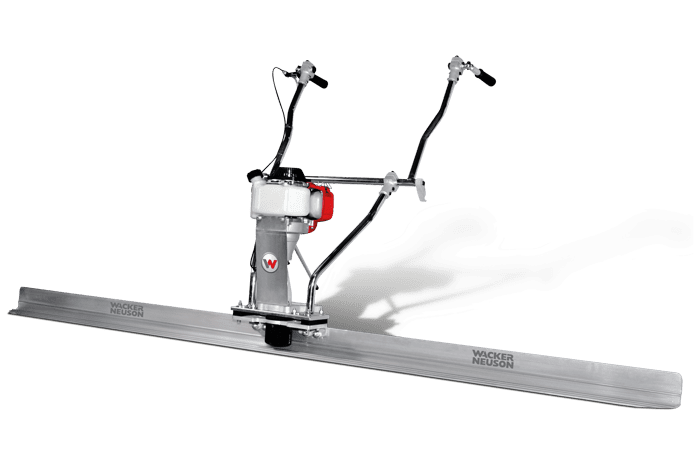

P35A – Vibrating Wet Screed

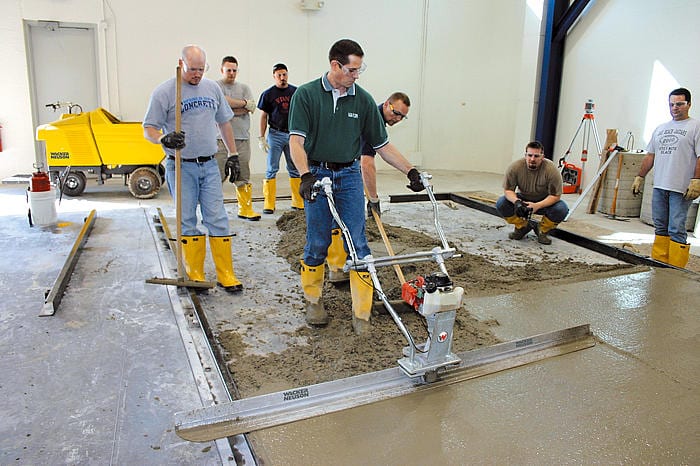

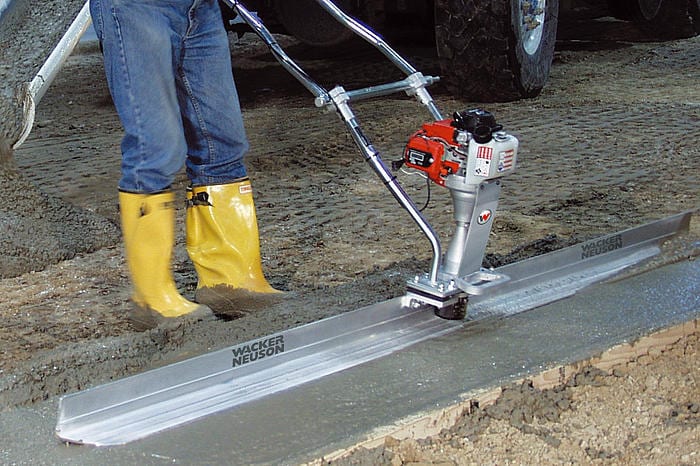

When finishing concrete floors Wacker Neuson’s wet screed carries out three working processes in one: spreading, screeding and compacting. Not only is this extremely practical, the device is also very easy to use. The carrying handles make it easy to move the P35A over the concrete and delivers first-class results in the process. It is suitable for all kinds of concrete, because the centrifugal force is adjustable to 7 positions.
– Extremely mobile device concept
– Easy to operate
– Encapsulated eccentric casing to protect from dirt, concrete and splash water
Wet screed P35A
| Weight | 15.5 kg |
| Engine / Motor | Air-cooled single-cylinder four-cycle gasoline engine |
| Engine / Motor manufacturer | Honda |
| Displacement | 35.8 cm³ |
| Engine performance | 1.0 (1.3) kW (hp) |
| at rpm | 7,000 rpm |
| Tank capacity | 0.65 L |
| Fuel consumption | 0.6 L/h |
| Length | 1,117 mm |
| Width | 889 mm |
The right length of profile for every operation
The profile lengths for the wet screed P 35A is available between 120 and 490 cm, depending on the size of the area to be screeded.
1,200–2,400 mm profile lengths
| SBW4F | SBW15M | SBW6F | SBW20M | SBW8F | |
|---|---|---|---|---|---|
| Weight kg | 3.8 | 4.6 | 5.4 | 6.1 | 7.6 |
| Length mm | 1,200 | 1,500 | 1,800 | 2,000 | 2,400 |
| Width mm | 165 | 165 | 165 | 165 | 165 |
3,000 – 4,900 mm profile lengths
| SBW10F | SBW12F | SBW14F | SBW16F | |
|---|---|---|---|---|
| Weight kg | 9.5 | 11.4 | 13.3 | 15.2 |
| Length mm | 3,000 | 3,700 | 4,300 | 4,900 |
| Width mm | 165 | 165 | 165 | 165 |
