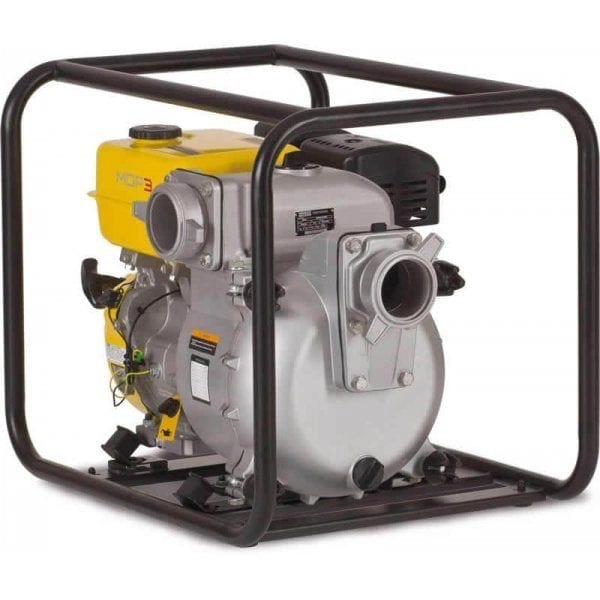

MDP3 – Centrifugal Dirty Water Pump 3″ – petrol
SKU
630144
Category Portable Centrifugal & Trash Pumps
The Wacker Neuson MDP3 self-priming centrifugal trash pump is driven by a reliable WN 5.8 kW four-stroke engine, and is equipped with a hard-wearing cast iron impeller and volute. It is the ideal choice for pumping dirty water on any construction site.
– Reliable and powerful 5.8kW (9hp) Wacker Neuson engine.
– Strengthened cast iron impeller and volute for improved durability.
– Thickened aluminium alloy pump housing.
– Compact design, with easy access to pump housing and engine, for trouble-free operation.
– Silicon carbide mechanical seal for longer service life.
– Unique wide impeller opening and volute channel design enables true solid handling capacity up to 25.4mm.
Technical Specifications
Dimensions (L x W x H) | 688 x 528 x 572mm |
Diameter (suction & discharge) | 80 mm |
Operating weight | 67 kg |
Discharge head | 20 m |
Discharge capacity | 1,150 L/min |
Suction height | 7.0 m |
Solids diameter max. | 25.4 mm |
Self-priming time | 12 sec |
Engine / Motor | |
Engine / Motor type | Air-cooled, 4-stroke, single cylinder, OHV |
Engine / Motor manufacturer | Wacker Neuson WN9 |
Displacement | 270 cm³ |
Operating speed | 3600 rpm |
Power max. rated | 5.8 kW |
Fuel type | Petrol |
Fuel tank capacity | 6.5 L |
Run time | 2.5 hrs |
