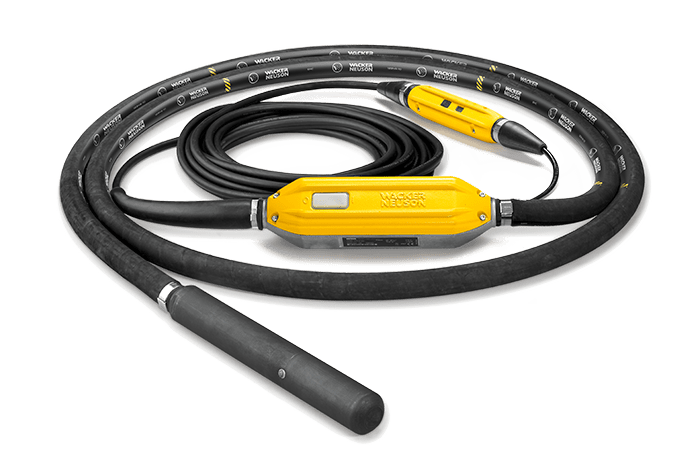

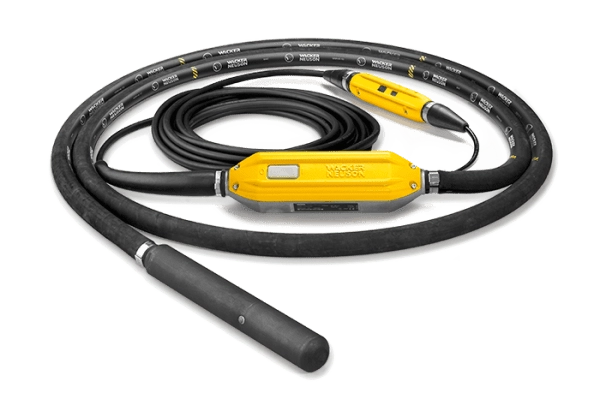

IRFU38/230/5 – High Freq. Internal Vibrating Shaft – 230V, 1-Phase

Diameter of the vibrator head: 38mm
Length of the vibrator head: 353mm
Weight of the vibrator head: 2.2kg
Operating weight: 13.6kg
Protective hose: 5m
Protective hose max.*: 15m
Feed cable: 15m
Effective compaction diameter**: 50cm
Vibrations Per Minute (VPM): 12,000
Voltage 1~: 220-240V
Current: 3.5A
Frequency: 50-60Hz
Engine/Motor: High-frequency squirrel-cage induction motor with integrated electronic frequency converter in the switch box
Power: 0.5kW (0.74hp)

*Other hose lengths available. **This is non-binding information, based on the practical experience of our clients under certain operating conditions. Please note that under specific operating conditions these findings may vary. We recommend that you always begin by carrying out a test pour under operating conditions.

IRFU in detail:

	Bodyguard Safety First – the Bodyguard™ protection system offers additional safety to the operator. The Bodyguard™, which is attached at the end of a cable, controls all subsequent elements and switches the unit off within 3 milliseconds in the event of irregularities or danger of electric shock. The Bodyguard is adaptable, i.e. when exchanging the cable, the Bodyguard can be connected to the new cable and thus can continue to be used. Check functionality independently by using operating lights and test push buttons.
	Integrated frequency converter Save equipment: no additional frequency converters are necessary to operate this internal vibrator Simply connect to a plug receptacle and get to work right away Constant performance and high level of efficiency: reliable operation with generators and even with fluctuating input voltages Work safely: no danger from current, thanks to the complete potted electronic components
	Vibrator head sizes for all applications Outfitted for any application – 5 vibrator head sizes available Diameter 30, 38, 45, 58, 65 mm
	Vibrator head with cylindrical roller bearings Extremely durable – completely tempered vibrator head Less wear, especially with abrasive concrete aggregates Plug effectively dispels shocks on the housing Ideal for continuous use under construction site conditions
	Protection hose Made of sturdy, very abrasion resistant material Various protection hose lengths available up to max. 10 meters
	Power cable You can’t get any more freedom of movement: Power cable wit

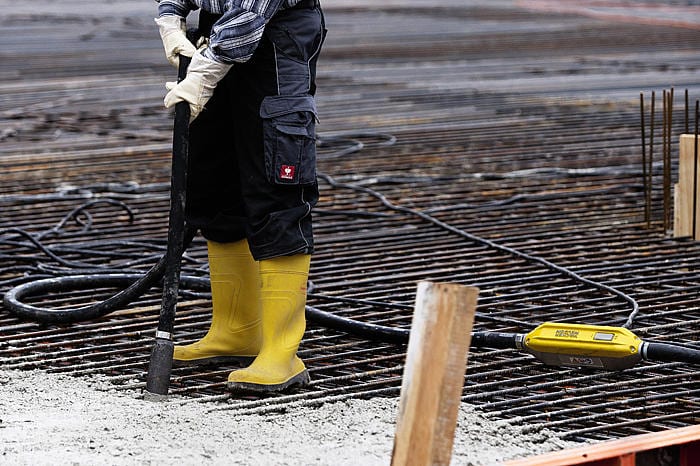

Ideal for large construction sites with large working areas. The IRFU series is directly connectable to a 1-phase power connection

An integrated frequency converter is very advantageous, especially with large vibrator heads. In contrast to normal internal vibrators, where you need to carry the frequency converter from place to place when compacting a large area, Wacker Neuson’s IRFU range have the advantage that the frequency converter is already integrated within the unit. Just connect the device to a 1-phase power supply and IRFU compacts immediately. The operator pulls the device with the converter along behind him. This is entirely safe, due to the completely sealed electronics.
