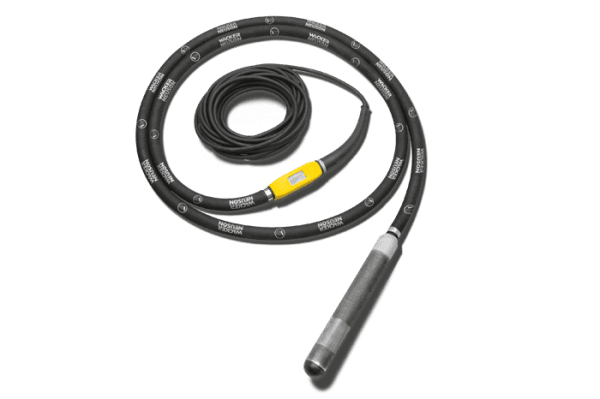

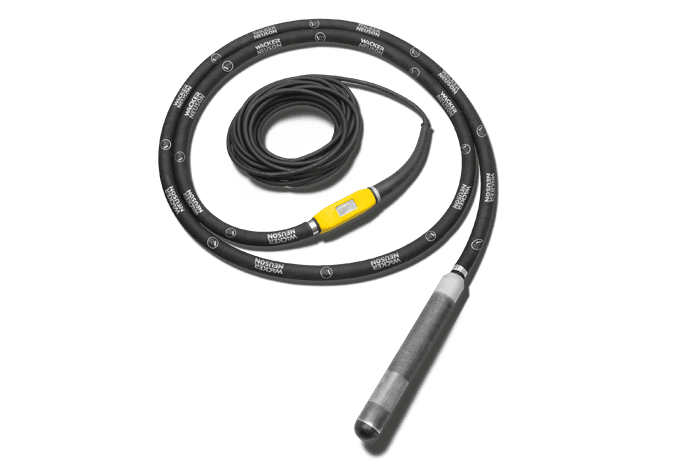

IREN58/042/5 – High Freq. Internal Vibrating Shaft – 42V, 200Hz

Home>Concrete Technology>High Frequency Internal Vibrators>IREN58/042/5 – High Freq. Internal Vibrating Shaft – 42V, 200Hz
SKU 5000007820 Category

Productivity and long service life: these are the outstanding characteristics of the Wacker Neuson IREN range. Even under tough application conditions, these high-frequency internal vibrators will convince with an all-round consistently high compaction performance.

   – High-performance electric motor with stable speeds.
– Integrated thermal overload protection breaker.
– The induction-hardened vibrator head ensures high wear resistance.
– No special tools are required for changing the vibrator head.
– The electric motor has been developed by us according to the highest quality standards: Made in Germany.

Diameter of the vibrator head: 58mm
Length of the vibrator head: 400mm
Weight of the vibrator head: 5.8kg
Operating weight: 16.2kg
Protective hose: 5m
Protective hose max.*: 18m
Power cable: 15m
Effective compaction diameter**: 85cm
Vibrations Per Minute (VPM): 12,000
Voltage***: 42V
Current: 7.3A
Frequency: 200Hz
Engine/Motor****: High-frequency squirrel-cage induction motor
Power: 0.9kW (1.22hp)

* Other hose lengths available. ** This is non-binding information, based on the practical experience of our clients under certain operating conditions. Please note that under specific operating conditions these findings may vary. We recommend that you always begin by carrying out a test pour under operating conditions. ***250V version also available. ***** Ideally suited for use with a Wacker Neuson frequency and voltage converter.

IREN in detail


Vibrator head with cylindrical roller bearings

  • Extremely durable – completely tempered vibrator head
  • Less wear, especially with abrasive concrete aggregates
  • Plug effectively dispels shocks on the housing
  • Repairs possible on the vibrator head
  • Easily replace wear parts yourself – Rubber cap easy to replace with tools

Vibrator head sizes for all applications

  • Outfitted for any application – 5 vibrator head sizes available
  • Diameter 30, 38, 45, 58, 65 mm
Protection hose

  • Made of sturdy, very abrasion resistant material
  • Various protection hose lengths available up to max. 18 meters

Power cable

  • You can’t get any more freedom of movement: Power cable with 15 meters in length
