H65 – Vibrating Head 65mm – Round Nose Cap
Vibrator head
– Extremely durable and protected against wear.
– Induction-hardened vibrator head.
– Repairable vibrator head.

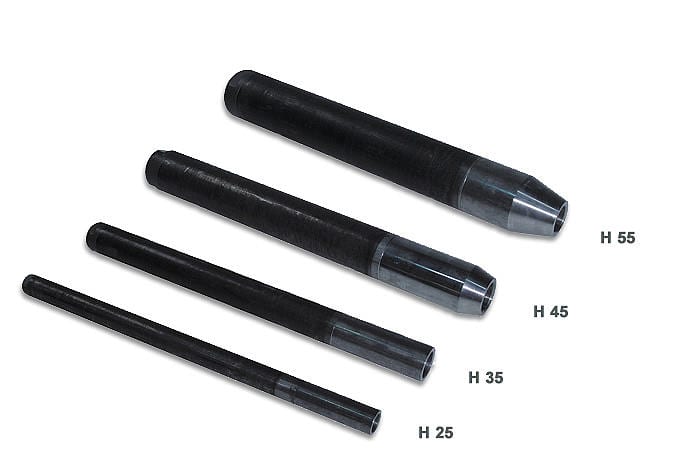

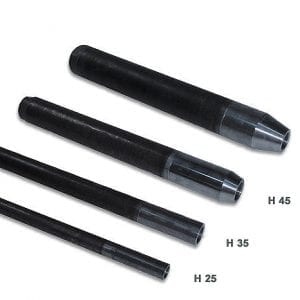

– Vibrator head sizes for all applications. 6 vibrator head diameters available: 25, 35, 45, 50, 55, 65mm.
MECHANICAL DETAILS
Head diameter: 65mm
Head length: 385mm
Weight: 6.2kg
Head design: round
Drive Unit: M3000
Shaft type: S-shaft
OUTPUT DETAILS
Vibrations (per min): 12,000
Vibrations (Hz): 200
Amplitude at air: 3.2mm
ENVIRONMENT DATA
Operating temperature range: -30 to +45 °C
Storage temperature range: -30 to +80 °C
