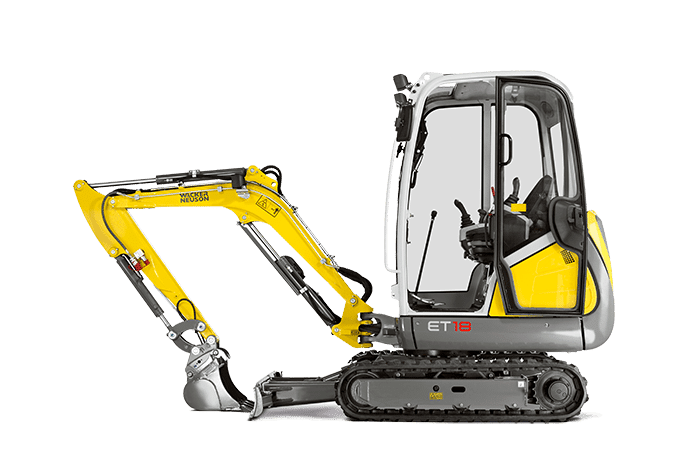

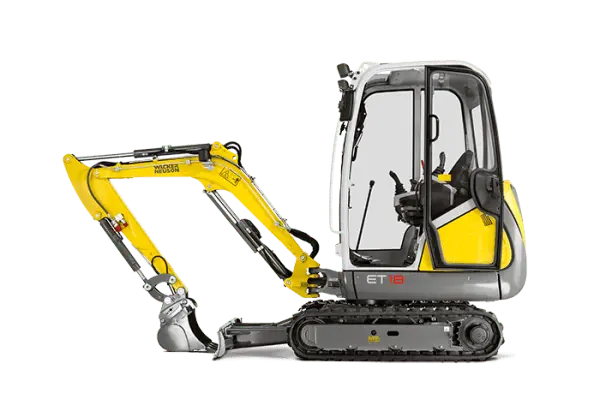

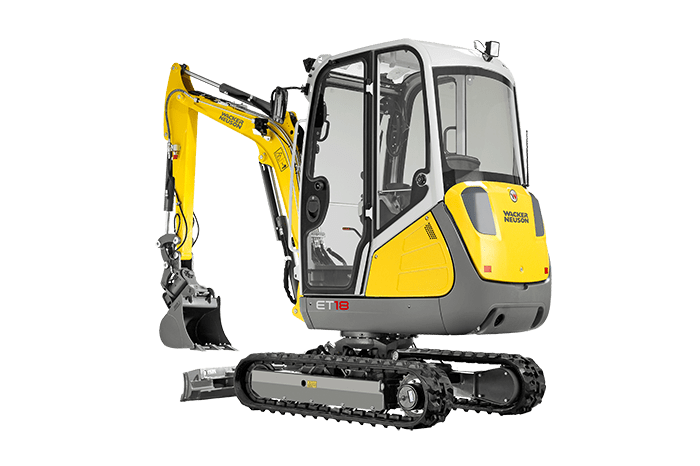

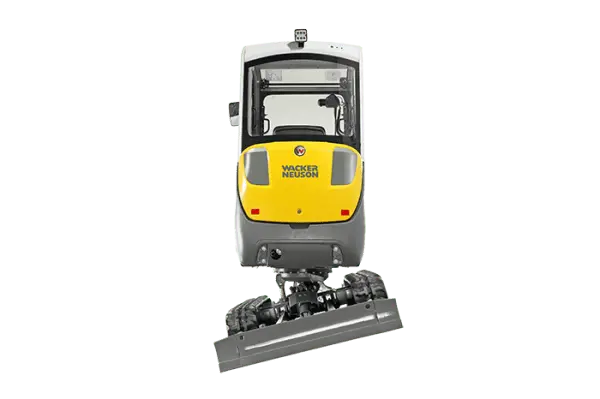

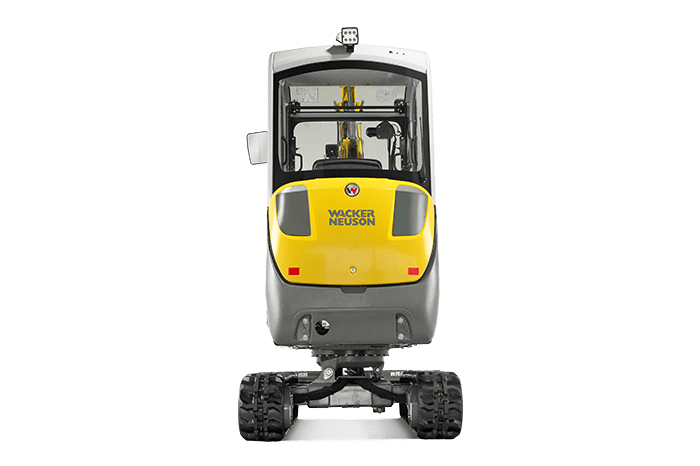

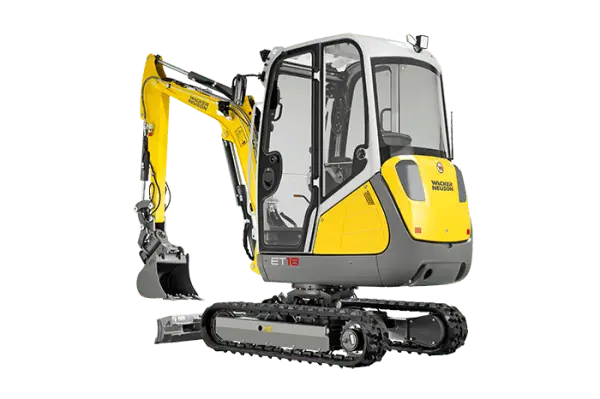

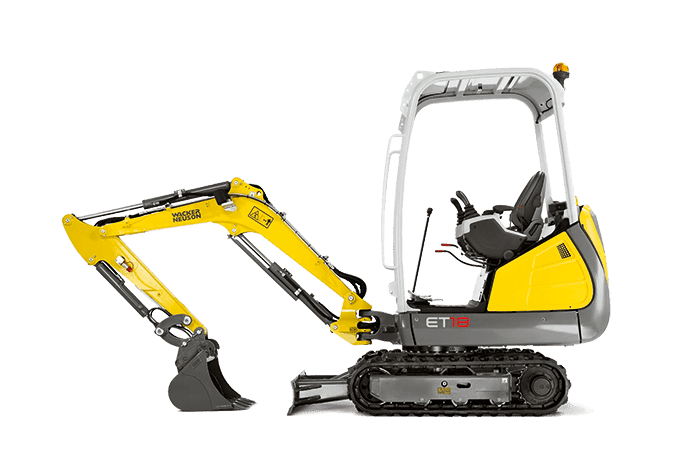

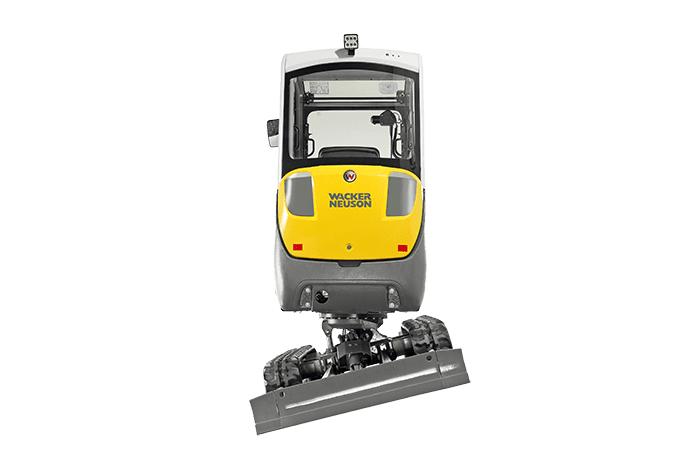

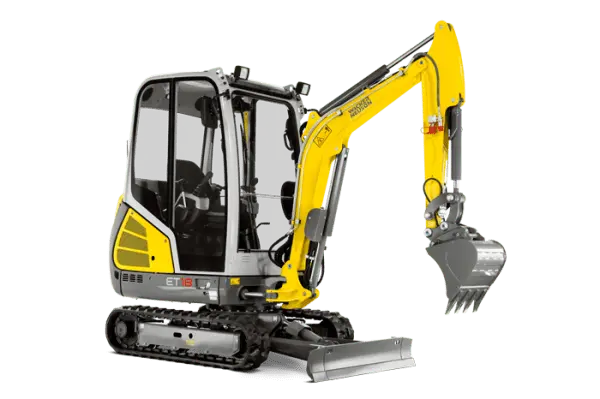

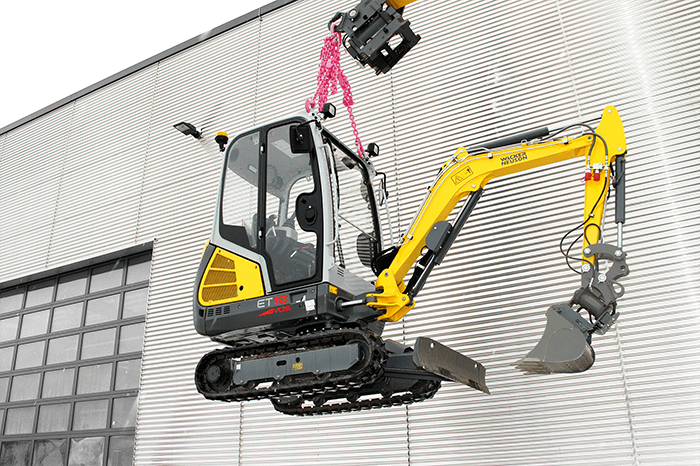

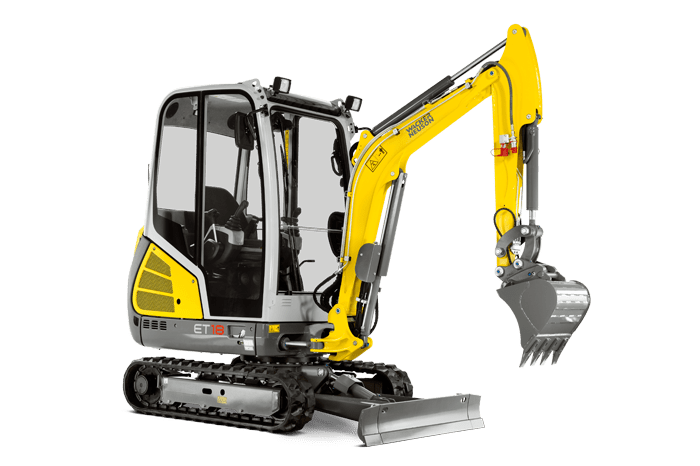

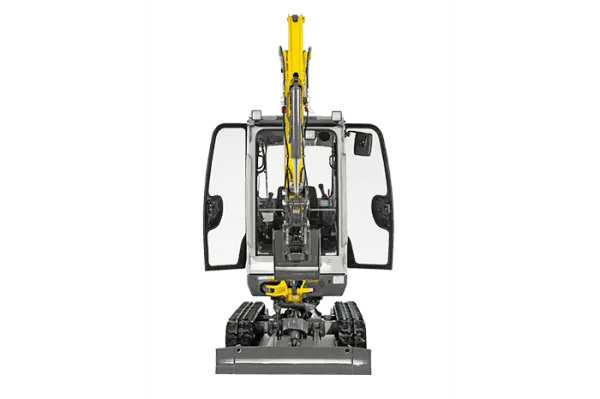

ET18-VDS Tracked Excavator – Conventional Tail

SKU 1000258092.01 Category Tag

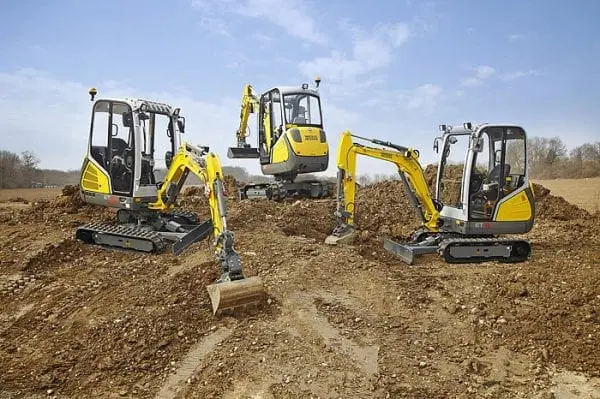

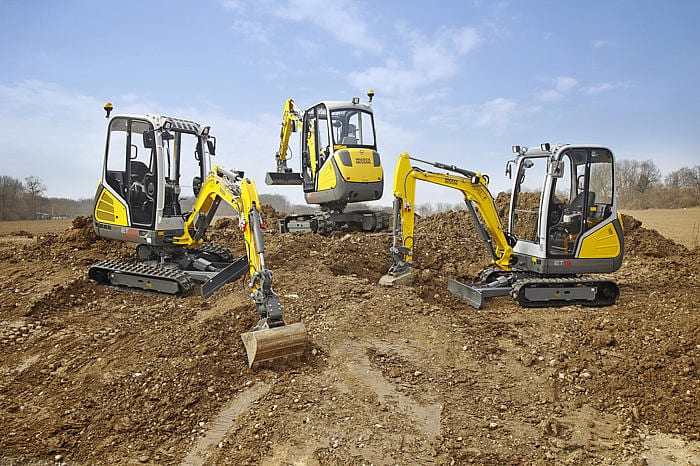

Wacker Neuson sets new standards for compact excavators with its new generation of models in the 1.7 through 2.4 tonne class. Tried and tested innovations are retained and combined with completely new development approaches. The result: A comprehensively renewed machine class right down to the finest details, which promises greater efficiency and performance.

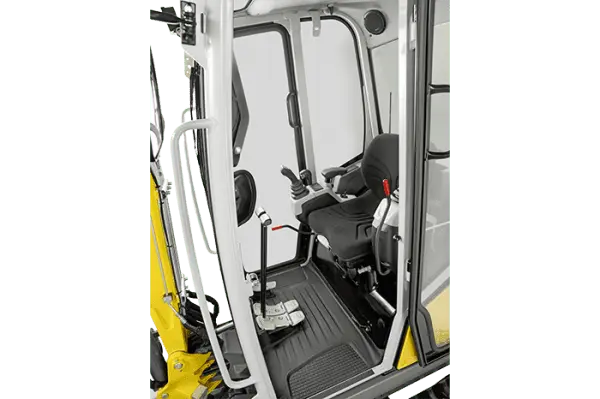

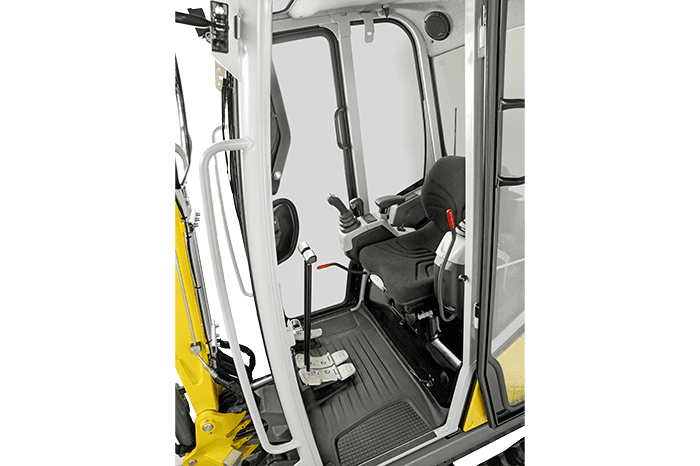

– Innovative, newly designed cab: The redeveloped cab of the ET range sets new standards in terms of clear layout, safety and user comfort with its completely redesigned interior.

– Powerful and efficient performance: The big diesel engines and new, innovative hydraulic system set new standards of operation.

– Maximum connection facilities with up to 4 auxiliary control circuits: Up to 4 additional control circuit options are available ex-works for all models of the ET range.

– Every ET model has its own, optimized undercarriage to guarantee maximum stability and superior drive characteristics in tough everyday conditions.

– Every ET model has its own, optimized boom system with different dipper stick lengths: Thanks to the strong boom system with a choice of two optional dipper stick lengths, every machine achieves maximum digging strength and excavation values.

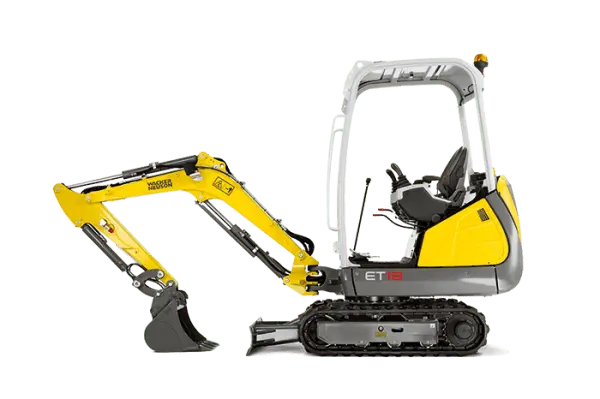

– Options: Easy Lock hitch, Power Tilt hitch and cabin.

Operating data

Operating weight 1,725 – 2,203 kg
Biting force max. 11.2 kN
Breakout force max. 18.8 kN
Digging depth max. 2,397 mm
Digging radius max. 3,989 mm
Superstructure slewing speed10 rpm
Dimensions (L x W x H)3,854 x 990 x 2,289 mm

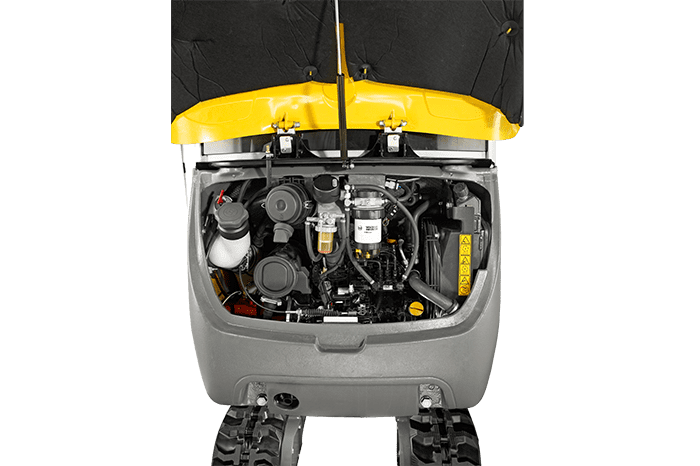

Engine / Motor

Engine / Motor manufacturer Yanmar
Engine / Motor model3TNV76
Engine / Motor typeWater-cooled 3-cylinder diesel engine
Displacement 1,116 cm³
Operating speed2,200 rpm
Engine performance acc. to ISO13.2 kW
Battery capacity44 Ah
Tank capacity 24 L

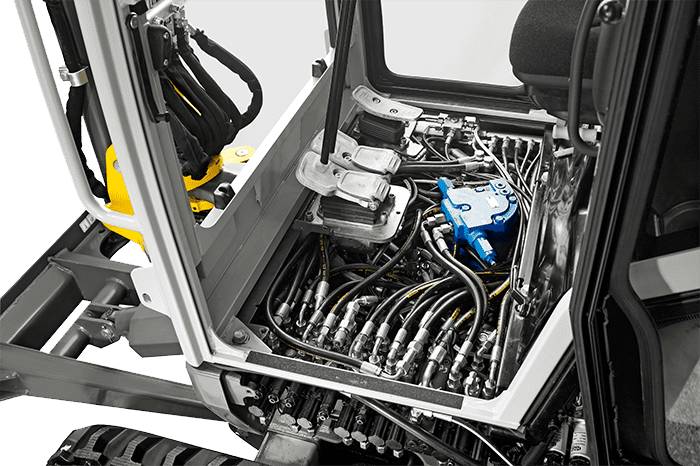

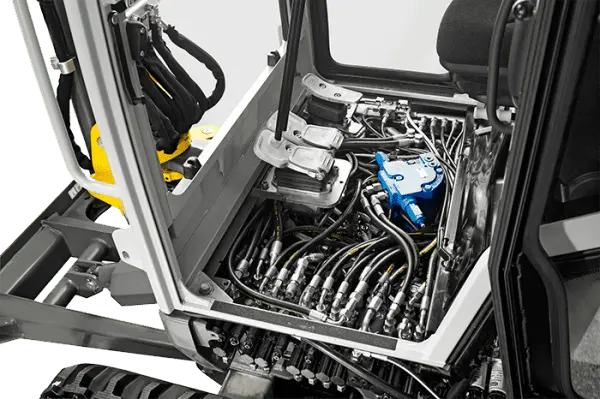

Hydraulic system

Duty pump Double variable pump
Max. flow rate23.8 + 23.8 L/min
Duty pump Gear pump
Max. flow rate 19.1 + 6.5 L/min
Operating pressure for working and traction hydraulics200 bar
Operating pressure of slewing gear125 bar
Superstructure slewing speed10 rpm
Hydraulic oil tank19 L

Undercarriage

Travel speed max.5.3 km/h
Chain width 230 mm
Ground clearance standard undercarriage210 mm

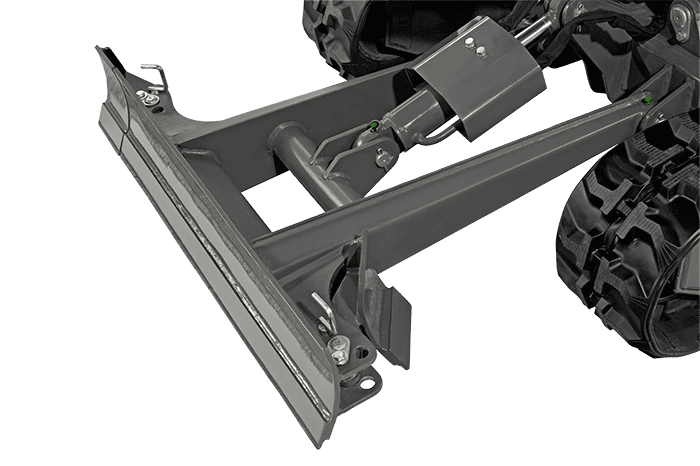

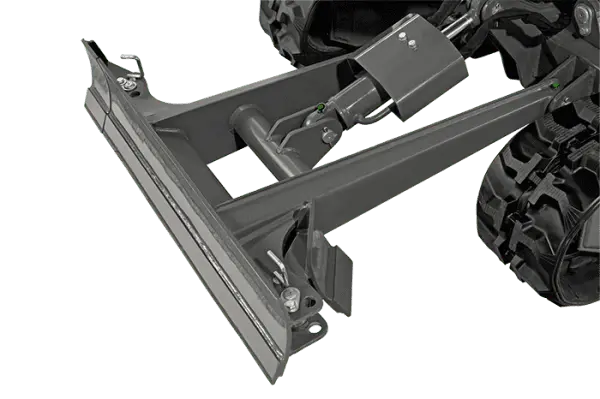

Dozer Blade

Width 990 mm
Height 230 mm
Stroke standard dozer blade above ground200 mm
Stroke standard dozer blade below ground320 mm

Sound level

Sound level (LwA) acc. to 2000/14/EC93 dB(A)
Cabin – specified sound pressure level LpA acc. to ISO 639475.8 dB(A)
