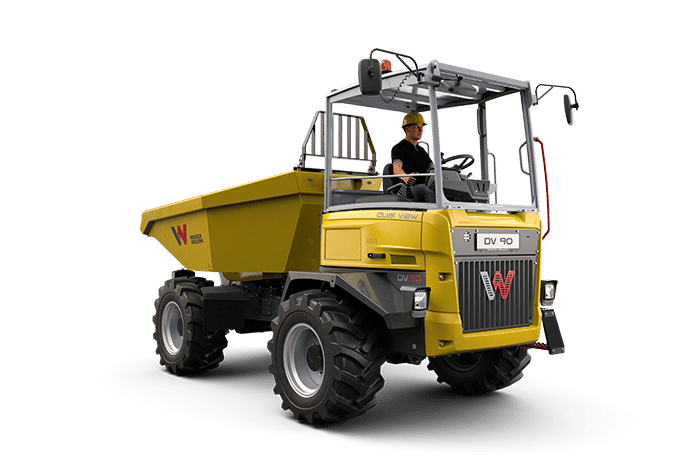

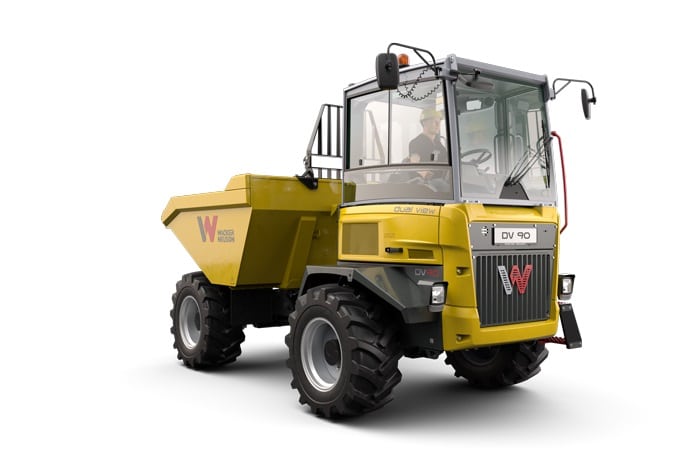

Dumper Wheeled DV90 Dual View 9T
– The 180° turntable driving seat ensures a circumferential visibility and a maximum safety on the job-site
– The new driver’s position concept enables the driver to turn the seat and the console terminal at 180°
– The dual view drives like a job-site truck, but considerably more useful off-road
– Fully control over the load and precise dumping

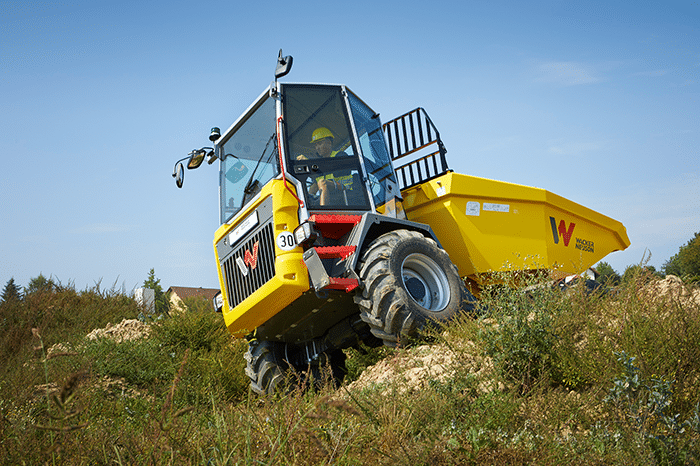

– High ground clearance for use in rough terrain
– The hydrostatic drive and the hydrostatic brake action relieve the use enormously
– Acceleration from 0 to the maximum of 30 km/h without loss of tractive effort
– All of the dual view dumpers outreach the effective norm of field of vision ISO 5006 and ensure a maximum of safety
– The very comfortable cabin is provided (partial optional) with tinted windows, climate control, sunscreens, oddments storage places and much more
OPERATING DATA | |
| Payload | 9,000 kg |
| Shipping weight | 4,925 – 5,250 kg |
| Operating weight | 5,071 – 5,396 kg |

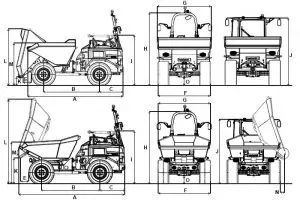

| Dimensions (L x W x H) | 4,622 x 2,420 x 3,382 mm |
| Skip capacity – stroke | 3,300 L |
| Skip capacity – heaped | 4,350 L |
| Skip capacity – water measure | 2,050 L |
| Traction drive | 4WD / hydrostatic |
| Travel speed max. | 30 km/h |
| Articulation angle | 29° |
| Pendulum angle | 11° |
| Turning radius | 6,491 mm |
| Gradeability | 50% |
| Tyres | 500/60-22.5 |
| Tank capacity | 80 L |
| Sound level (LwA) | 101 dB(A) |
ENGINE SPECS | |
| Engine | Deutz TD2.9 L4 |
| Engine type | Water-cooled 4-cylinder turbo-diesel |
| Displacement | 2,925 cm3 |
| Engine performance | 55.4kW / 74.3hp |
| Nominal engine speed | 2,200 rpm |
| Emissions | Level 3b / Tier IV final |
HYDRAULIC SPECS | |
| Operating pressure | 240 bar |
| Steering pump | Axial piston pump |
| Flow rate | 123 L/min |
| Operating pressure | 480 bar |
| Duty pump | Gear pump |
| Flow rate | 70.2 L/min |
Always be on the safe side with a better view
With the seat position, the operator changes the line of sight and the forward direction of travel. Time-consuming turning and maneuvering is therefore no longer necessary.

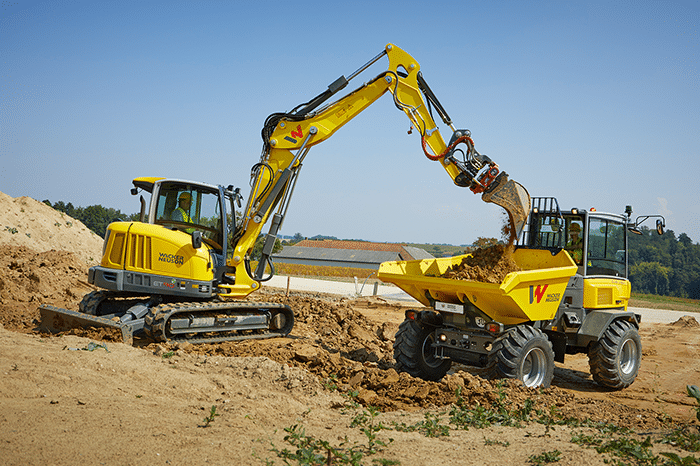

Especially on small, cramped construction sites, for example in inner city areas, in tunnels or on busy roads, the DV90 Dual View fully demonstrates its benefits and strengths:
– The driver steers the wheel dumpers with skip in the direction of travel to the construction site
– Loads or unloads with a complete view of the loading area
– Leaves after a 180° turn of the seat console the same way with full field of view and without having to turn the vehicle.
That way, the operator always keeps an eye on the work environment – and that means significantly more safety. Even a fully loaded skip no longer obstructs the view, because the driver leaves the skip behind him like with a truck.
Product simulation, image similar.

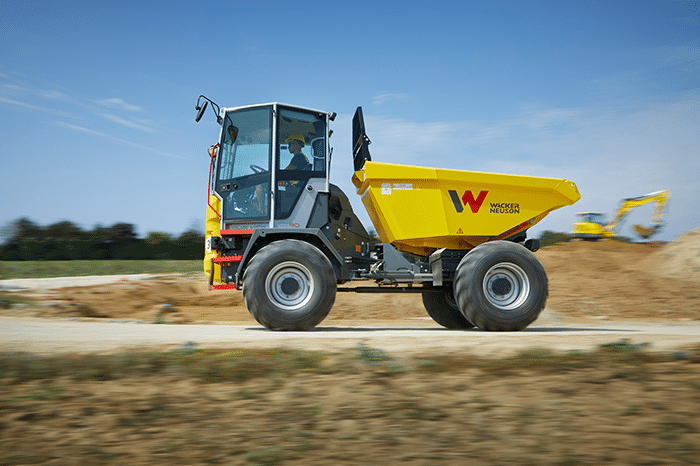

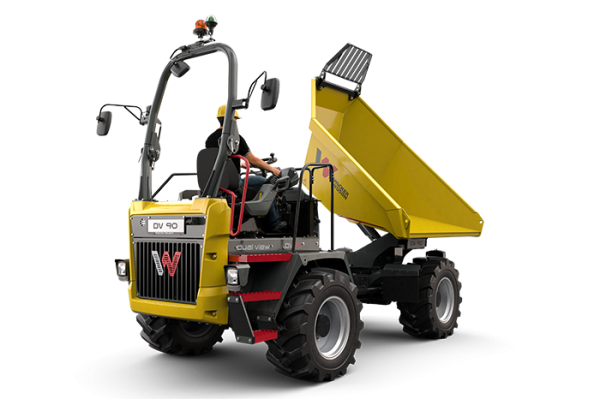

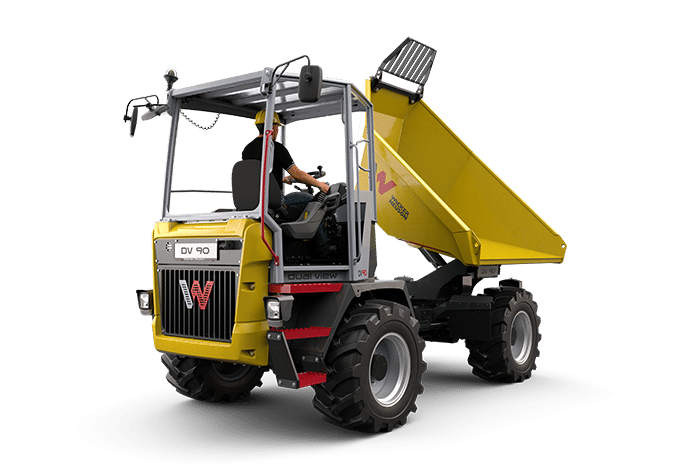

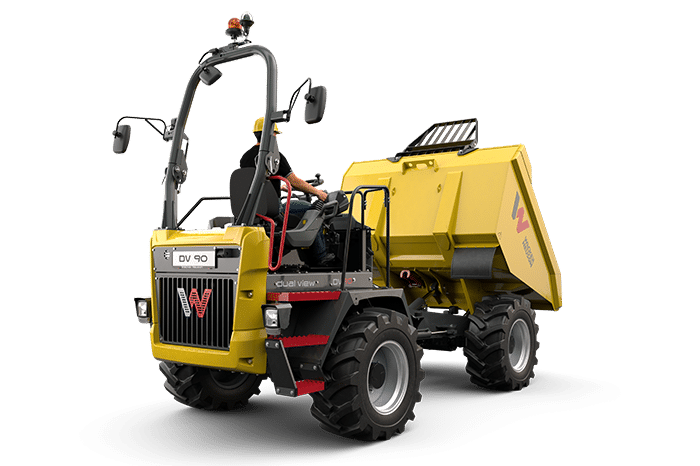

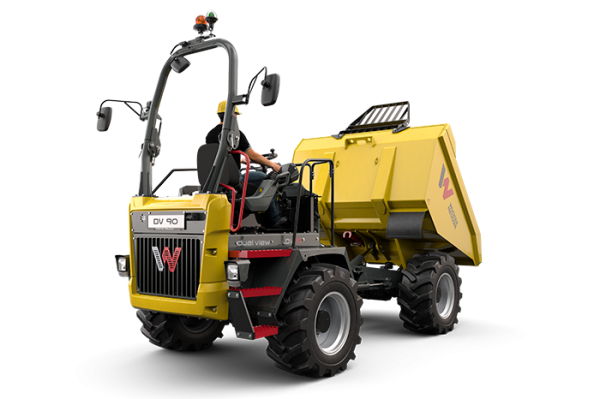

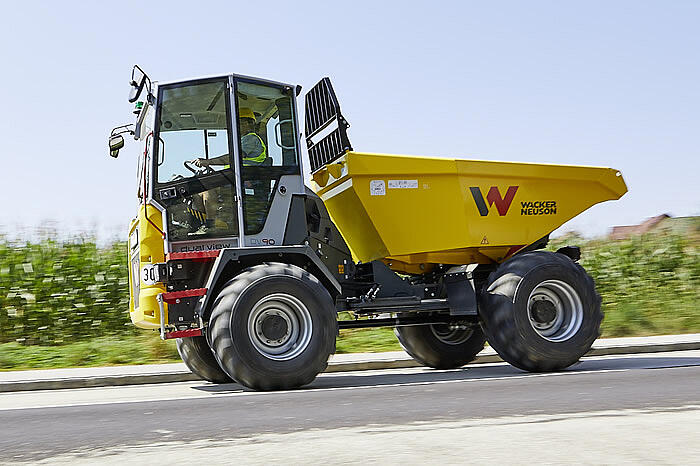

High driving position:
The Dual View safely runs as a construction truck, but is significantly more suitable for off-road applications.

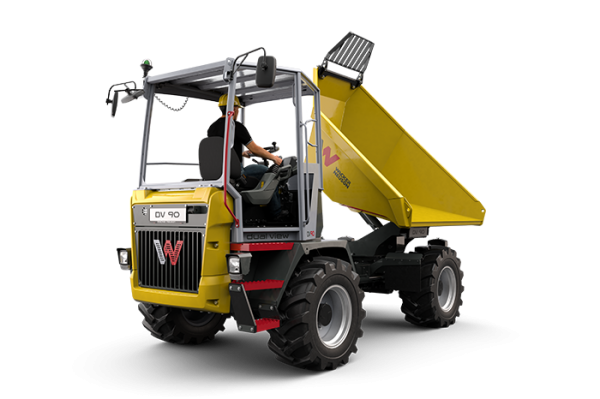

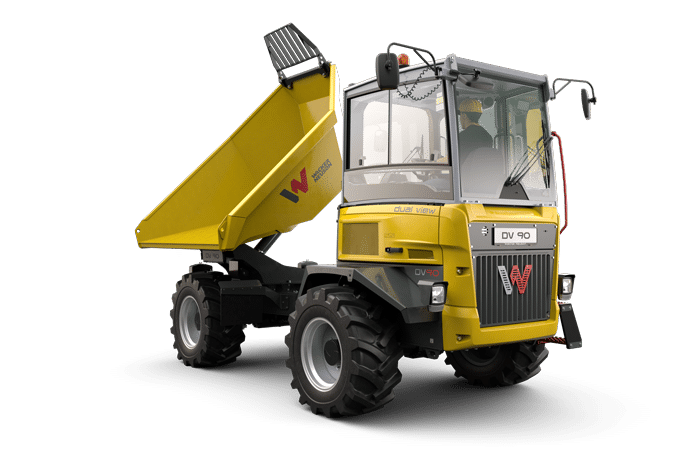

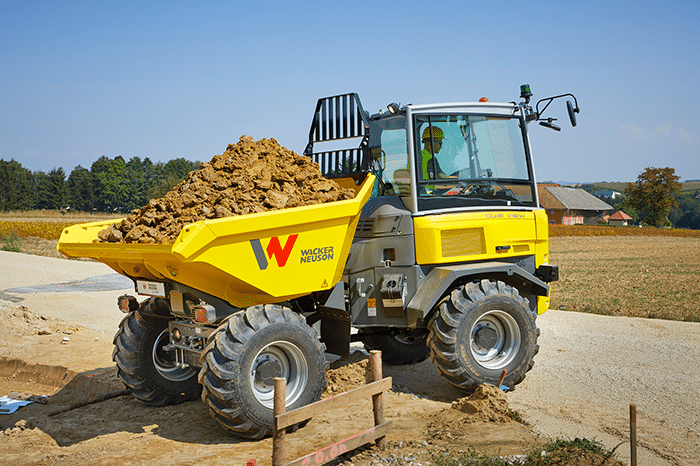

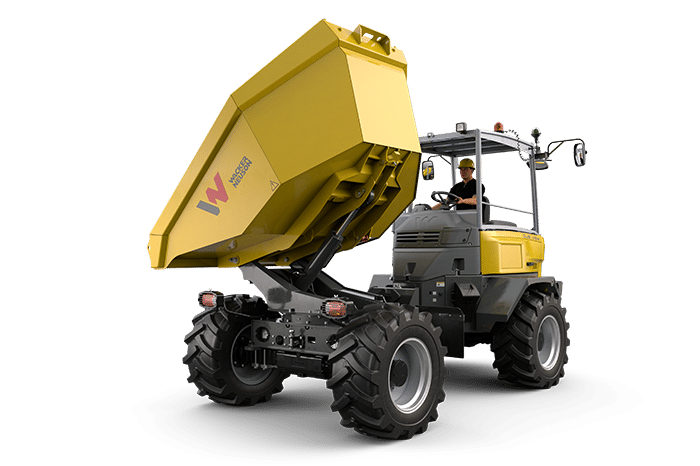

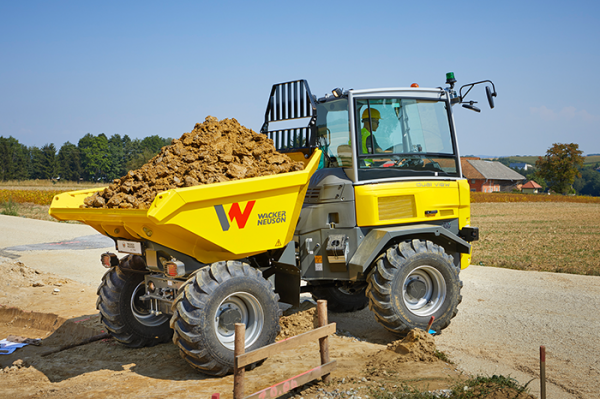

High working position:

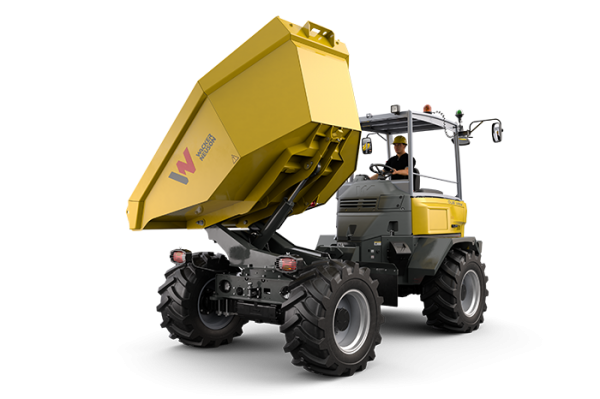

Full load monitoring and precise dumping.
Optimal view = more safety
180° rotation of the entire driver’s station
More safety
Higher productivity
Hydrostatic drive
– The vehicle stops as soon as the operator takes his foot off the gas pedal
– Full focus on the job without frequent gear changes
– One central hydraulic motor that drives both axles via a cardan shaft
– Hydrostatic braking effect as soon as the foot is removed from the accelerator pedal
– Low-wear drive for low service and maintenance costs
– Controlled deceleration for regulated changeover, thus no abrupt changes of travel
– Accelerate from 0 to maximum speed of 30 km/h without loss of traction
More ease of use thanks to the ergonomic rotary console.
Easy 180° rotation – time-consuming turning maneuvers are obsolete.
- Joystick handle with direction change switch and dump operation, so one hand can always stay on the steering wheel.
- Multifunction display for machine functions
- Standard rear-view camera monitor, so you can always see the skip in any seating position.
- Steering column with tilt adjustment simplifies safe entry and exit
- Additional storage space
- Ball bearing slewing ring for quick change of the seat position
Simply see more.
The DV90 Dual View stands out clearly from the requirements of the field of view standard ISO 5006: 2017.
Beyond the green marked area, the operator can see a height of 1.2 m from the cabin in the dual view.
Beyond the dashed line, it is required to see a height of 1.2 m according to the ISO field of view standard.

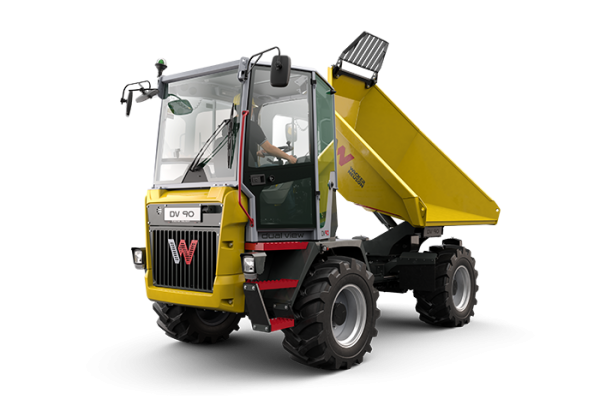

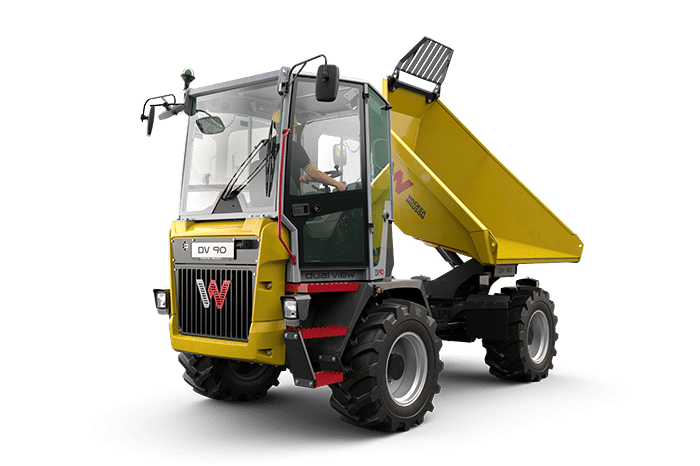

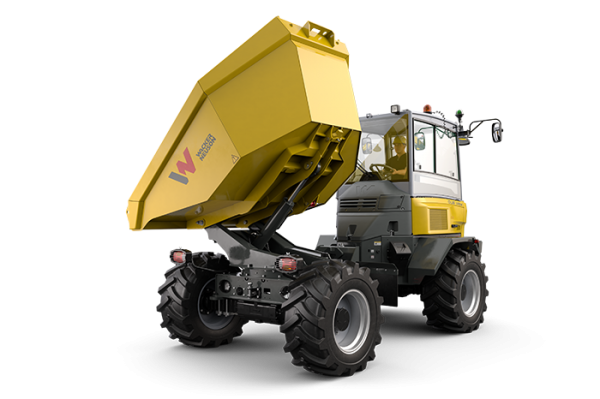

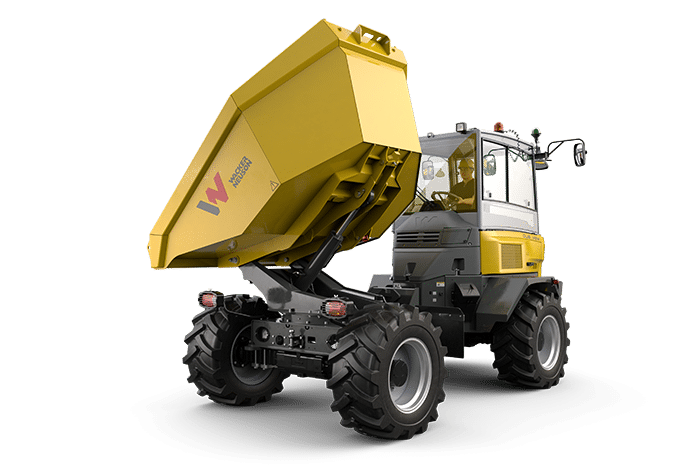

Comfort cabin
The DV90 Dual View provides plenty of head and legroom inside the cabin. It is equipped with heating as standard and air conditioning is optionally available. The operator can work under ideal temperature conditions in summer as well as in the winter times. For extra safety, the cabin is always equipped with ROPS/FOPS Level II.

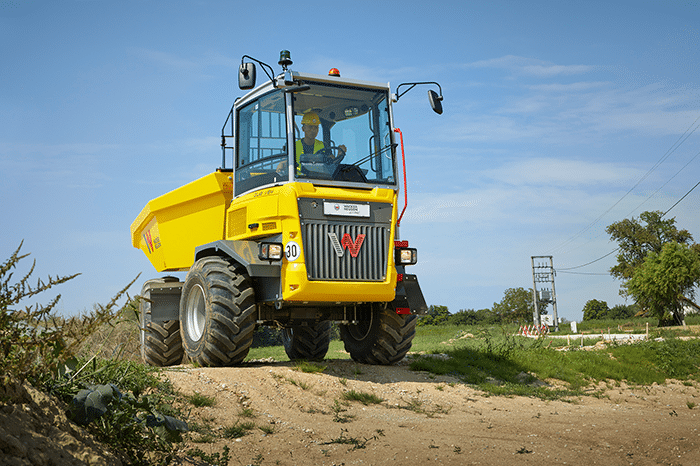

Driving direction
Skip direction
Entering the driver’s cab
Safe and comfortable ascent to the driver’s station. The steps are highlighted with signal color for better visibility.
