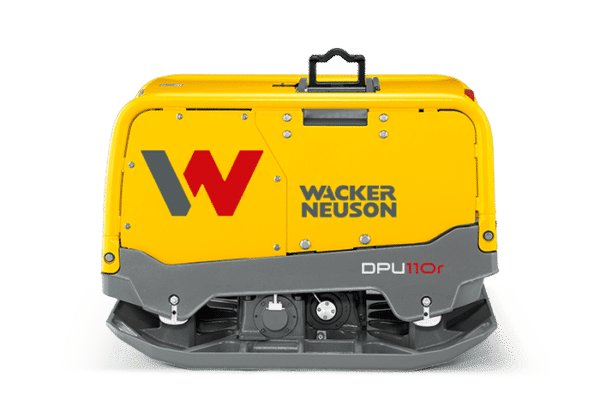

Wacker Neuson DPU110r Lec870 Vibrating Plate – Remote Control – 870mm Wide, Diesel

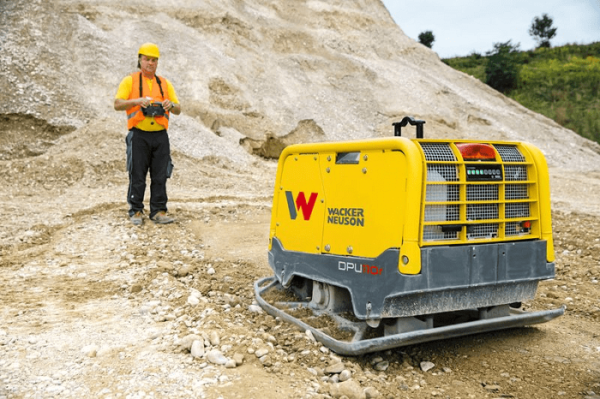

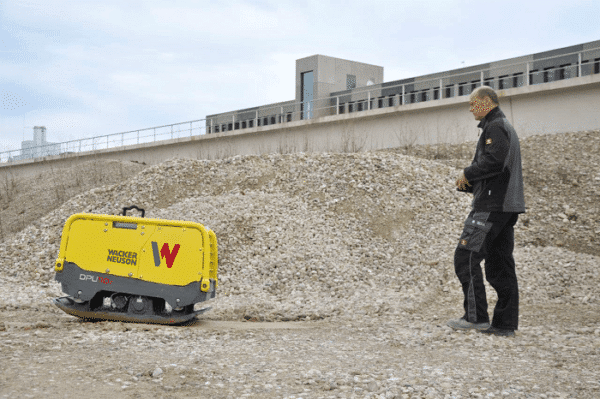

Using an innovative exciter technology, the DPU110r can be controlled sensitively and without loss of travel speed, offering the operator maximum working comfort in addition to precise control. At a safe distance from the machine, operators are not directly exposed to noise or exhaust fumes. Optimal protection is provided by the infrared remote control, which switches the vibratory plate directly to on-the-spot compaction if the clear line of sight is lost between the operator and the machine. As one of five models, the DPU110r is among the most powerful heavy vibratory plates in its class.
– Powerful, optimally designed vibratory plate
– Available in 2 widths: 870 and 970 mm
– Intelligent water-cooled engine for ambient temperatures up to 50°C.
– Available as a remote-controlled or alternatively center pole controlled version
– Compamatic: additional compaction control, conveniently from your desk (accessories for machines with compatec)
Operating data | |
| Operating weight: | 793 kg |
| Centrifugal force: | 110 kN |
| Base plate width: | 870 mm |
| Base plate length: | 1183 mm |
| Base plate thickness: | 14 mm |
| Height (vertical clearance) | 830 mm |
| Operating width: | 870 mm |
| Frequency: | 60 Hz |
| Advance travel max. (dependent on the ground and environmental influences): | 28 m/min |
| Surface capacity max. (dependent on the ground and environmental influences): | 1462 m²/h |
| Transport height: | 1000 mm |
| Transport length: | 1515 mm |
| Transport width: | 1050 mm |
| Shipping weight: | 816 kg |
Engine | |
| Engine type: | Water-cooled 3-cylinder diesel four-cycle engine |
| Engine model: | Kohler KDW1003 |
| Displacement: | 1028 cm³ |
| Engine performance max. (DIN ISO 3046 IFN): | 18.5 kW (@3,600 rpm) |
| Engine performance (power rating) (DIN ISO 3046 IFN): | 16 kW (@2,700 rpm) |
| Operating performance (DIN ISO 3046 IFN): | 12 kW (@2,700 rpm) |
| Fuel consumption: | 3.3 L/hr |
| Fuel tank capacity: | 11.2 L |
| Permissible tilt: | 25 ° |
| Power transmission: | Hydrostatic |
| Fuel type: | Diesel |
| CO2 (NRSC): | 933 g/kWh |
High level of operating comfort thanks to remote control | |
 |  |
| – Sensitive and variable control when turning curves – The remote control can be charged under a lockable hood, protected against theft – The application of several remote-controlled vibratory plates is easily possible – Self-explanatory operatings controls, no familiarization period necessary | – Very safe: the remote control works only with a clear line of sight to the unit – The proximity recognition sensor protects the operator before control is lost – Best protection: the infrared sensor yields in the event of impact |
Optimal compaction control with Compamatic– Compamatic is a function in the EquipCare Manager connecting compaction control and Telematics – The new function helps you to better plan construction site procedures and to ensure quality – Due to this, a machine’s success with compaction is traceable from your desk in the EquipCare Manager – Simply affix the Compamatic module (accessories for machines with compatec) to the machine. The module transmits the machine’s location and compaction data via GPRS to the EquipCare Manager. | |
First-class compaction performance– Individually controllable compaction performance, ideally adjustable to the soil to be compacted – Water-cooled engine, optimally matched to the vibratory plate – Sturdy base plate: very good travel rate for fast compaction with optimal results |  |
 | Optimal dimensions– Tailored to individual requirements: available in two operating widths, 870 or 970 mm – Only 830 mm high: low design thanks to the transversely installed engine — optimal for application in confined spaces, for example in trench shoring |
Ecological and fit for the future– The water-cooled engine complies with all emission directives sustainably, providing for an extremely long service life – Noise limits are considerably undershot — protecting the environment and the operator |  |
Extremely sturdy design– A frame made of steel pipe and steel sheets as covers make the DPU110r very sturdy and protect it from damage – The side covers can be screwed off – Durable, very heavy-duty design |  |
Security | ||
 |  | |
| – Lashing options as on large machines allow optimal securing for transport | – The lifting point is rotated by 90°, resulting in better protection when being lifted – For example, the operating controls cannot impact the dipper stick when transporting with the excavator | |
Maintenance and service– 100% service accessibility with a few steps – Screw-in side covers – Hood can be fully opened – Long maintenance intervals due to large air cleaner |  |
| – Base plate is easy to clean without risk of damaging hydraulic hose |  |
Intelligent machine protection | |
 |  |
| – Black box enables communication between people and machines – Operating displays give information on overload protection and error memory – Individual configurations possible – Theft protection can be set via a PIN |
|
Optionally available with shutdown in the event of over-compaction or with Compatec, a display that shows the com
