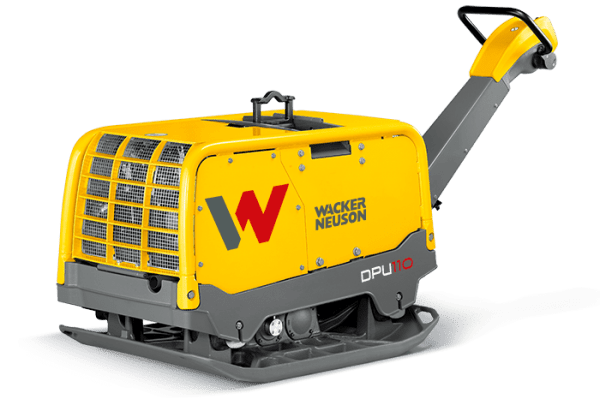

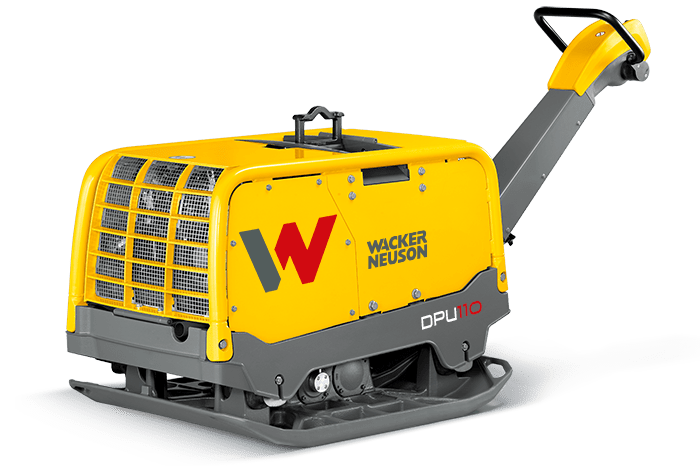

DPU110LEC-870 - Vibrating Plate - Key Start, Diesel, Compatec

DPU110LEC-870 – Vibrating Plate – Key Start, Diesel, Compatec

Home>Compaction>Forward/Reverse Vibrating Plates - Diesel Driven>DPU110LEC-870 – Vibrating Plate – Key Start, Diesel, Compatec
Request A Quote
SKU 5100026869 Category Tag

Operating data

DPU110Lem870 / DPU110Lec870DPU110Lem970 / DPU110Lec970
Operating  weight (kg)813830
Centrifugal force (kN)110110
Base plate width (mm)870970
Base plate length (mm)1,1831,183
Base plate thickness (mm)1414
Height (ground clearance) (mm)830830
Operating width (mm)870970
Frequency (Hz)6060
Hand-arm vibrations (m/s²)< 2.5< 2.5
Advance travel max. (dependent on soil and environmental influences) (m/min)3030
Surface capacity max. (dependent on soil and environmental influences) (m²/h)1,5661,746
Transport height (mm)1,6701,670
Transport length (mm)1,5151,515
Transport width (mm)1,0501,050
Shipping weight (kg)836853


Engine / Motor

Engine / Motor type Water-cooled 3-cylinder 4-stroke diesel engineWater-cooled 3-cylinder 4-stroke diesel engine
Engine / Motor manufacturer KohlerKohler
Engine / Motor modelKDW1003KDW1003
Displacement (cm³)1,0281,028
Engine performance (rated power) (DIN ISO 3046 IFN) (kW)1616
at rpm2,7002,700
Operating performance (DIN ISO 3046 IFN) (kW)1212
at rpm2,7002,700
Fuel consumption (L/h)3.33.3
Fuel tank capacity (L)11.211.2
Permissible tilt25 °25 °
Power transmission HydrostaticHydrostatic
Fuel type DieselDiesel



Further model variants are freely configurable:

– Operating width: 870 mm or 970 mm

– Steering: with center pole or remote control (see DPU110r)

– Available options: Overload protection sensor

– Compatec: compaction degree feedback control incl. shutdown at overcompaction

First-class compaction performance

  • Individually controllable compaction performance, optimized adaptation to the soil being compacted
  • Water-cooled engine, optimized for the plate’s requirements
  • Stable base plate: very good rate of advance for fast compaction and optimum results

Optimal dimensions

  • Adapted to individual requirements: available in two operating widths, 870 or 970 mm
  • Only 830 mm high: low design due to transversly mounted engine – ideal for operation in confined areas, such as in trenches

High operating comfort

No documentation requirements due to hand-arm vibrations below 2.5 m/s²
Very user-friendly: quick lowering and reset of the center pole via foot pedal
  • Easy change of direction by turning the stirrup handle
  • Intuitive controls, no training necessary
  • All controls are recessed in the center pole head and thus protected from damage

Ecological & sustainable

  • The water-cooled engine meets all emission regulations future-proof and allows operation at extrem temperatures
  • Water-cooling provides extremely long engine service life even with long-term operations
  • Way below the noise exposure limits – that protects the environment and operator

Extremely robust design

  • The steel tube frame and steel cover sheets make the DPU110 very robust and protected against damage
  • The side panels are detachable
  • Durable and very stable design

Safety

  • Tie-down options similar to those of large equipment allow an optimal securing during transport
  • The lifting eye is turned by 90 degrees and thus provides better protection of hood and center pole when being lifted.
  • Center pole and control elements cannot collide with the excavator arm when being transported.
  • Operator safety: If the operator releases the center pole the vibratory plate continuous vibrating but remains in place (on-the-spot vibration)

Maintenance and Service

  • 100% service access with a few easy steps
  • Detachable side panels
  • Hood can be fully opened
  • Long service intervals due to large air filter
  • Easy to clean base design without the risk of damaging hydraulic hoses

Intelligent equipment protection

  • Black box allows communication between man and machine
  • Operating displays provide information on overload protection and error logs
  • Individual configurations possible
  • Theft protection via PIN set
  • Optionally available with machine overload protection or compaction control Compatec incl. machine overload protection.
