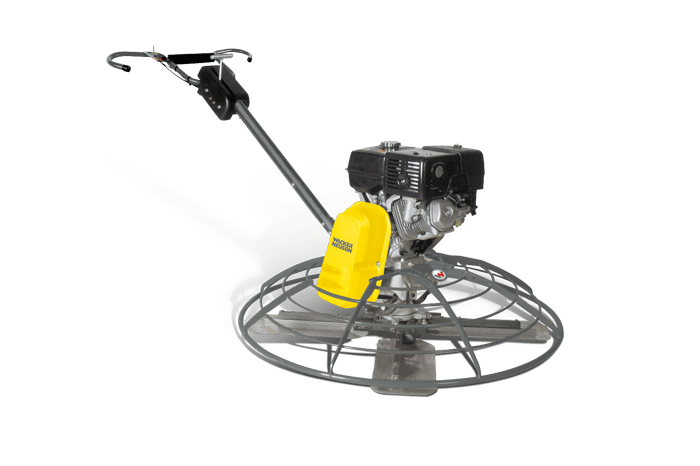

CT48-8A – Trowel 48″ – Petrol (Inc. Handle & Lifting Bracket)
Home>Concrete Technology>Walk Behind Concrete Trowel Packages>CT48-8A – Trowel 48″ – Petrol (Inc. Handle & Lifting Bracket)
SKU
5000009449
Category Walk Behind Concrete Trowel Packages
With a trowel diameter of 1,220 millimeters the models of the CT 48 trowel range are ideal for finishing medium large areas. The trowels are optimally balanced, therefore they can be effortlessly controlled in the wide range of speeds. The transmission brake, electronic safety switch and engine speed sensor offer additional triple protection for the user. In an emergency situation the device will simply switch off and the handle will come to a stand-still after no more than a three-quarter turn. Furthermore, the unit will only start if the throttle lever is set to zero. This prevents an inadvertent rotation of the handle on start-up.
– Variable speeds: Low speeds for floating, high speeds for polishing
– Blade pitch up to 30°
– Different levels of motorization
– Performance classes from 8.3 to 13.4 hp
– Emergency shutdown
Dimensions (L x W x H) | 2160 x 1220 x 1040 mm |
Weight without handle | 96 kg |
Troweling diameter | 1,220 mm |
Pitch range | 0 – 30 ° |
Rotor speed (min. / max.) | 60/125 rpm |
Quantity of blades | 4 |
Engine / Motor | Air-cooled single-cylinder four-cycle gasoline engine |
Engine / Motor manufacturer | Honda |
Engine / Motor type | GX 240 |
Displacement | 245 cm³ |
Engine performance max. (DIN ISO 3046) | 6.2kW (8.3hp) |
at rpm | 3,800 rpm |
Operating performance (DIN ISO 3046) | 6.2kW (8.3hp) |
at rpm | 3,800 rpm |
Fuel consumption | 2.7 L/h |
Tank capacity | 6.1 L |
