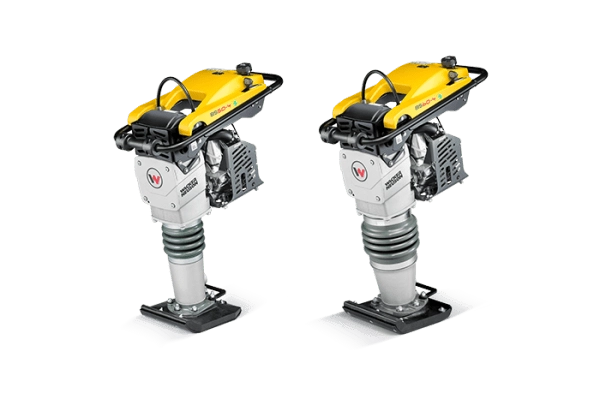

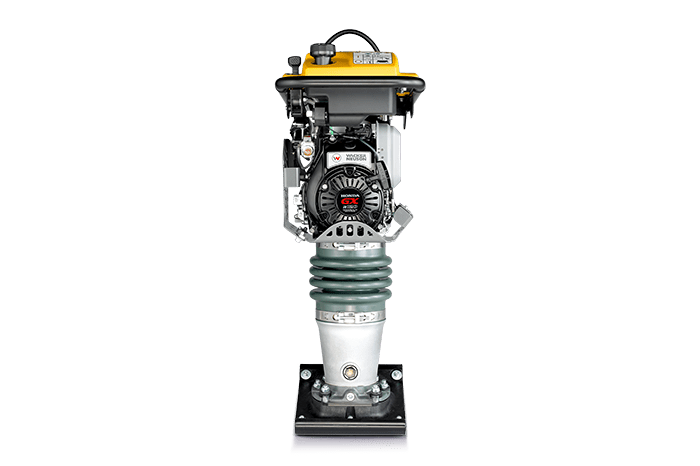

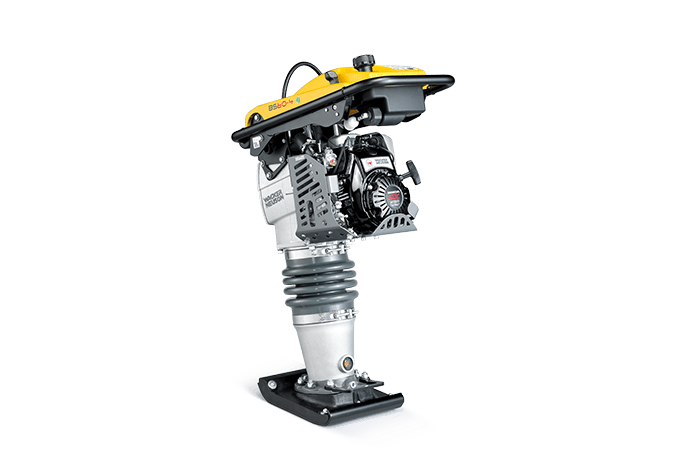

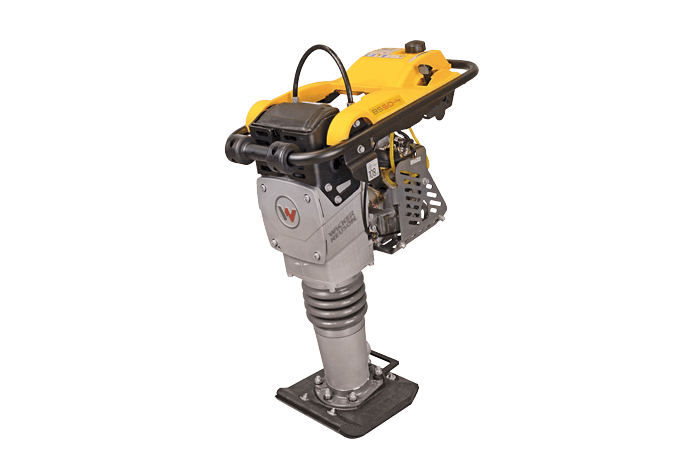

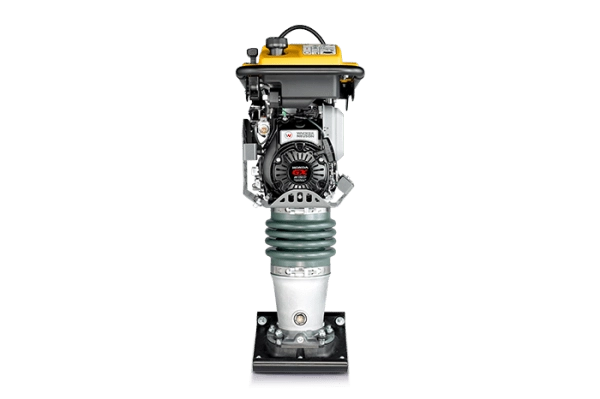

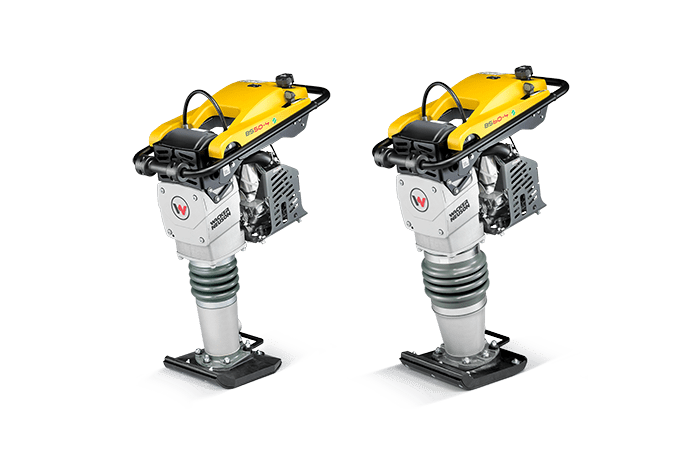

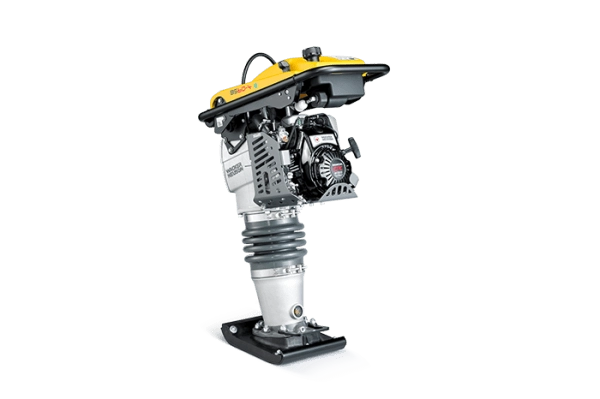

BS50-4As – Vibratory Rammer, 4-Stroke
Wacker Neuson’s 4-stroke rammers are classified by an excellent performance which is sustainably convincing. The high stroke energy, high percussion rate and long shoe stroke combined with a fast advance travel achieve excellent compaction results. Well thought-out features make the use of the 4-stroke rammers even more user-friendly, extend the service life and reduce maintenance to a minimum.
– Fast starting due to a small pump to the carburetor.
– Strong stroke for heavy, cohesive soils.
– Integrated oil deficiency protection with automatic shutdown when the engine is started with insufficient oil level.
– Premium air filter ensures an almost dust-free engine operation and provides three times longer change intervals.
Operating data | |
| Operating weight | 65 kg |
| Ramming shoe size (WxL) | 280 x 340 mm |
| Dimensions (L x W x H) | 673 x 343 x 940 mm |
| Percussion rate max. | 656 blows/min |
| Stroke at the ramming shoe | 61 mm |
| Impact force | 16 kN |
| Operating speed | 7.1 m/min |
| Surface capacity – compaction | 119 m²/h |
Engine / Motor | |
| Engine / Motor type | GXR 120 |
| Engine / Motor manufacturer | Honda |
| Engine / Motor | Air-cooled single-cylinder four-cycle gasoline engine |
| Displacement | 121 cm³ |
| Rated performance (DIN ISO 3046-1) | 2.7 kW |
| at rpm | 4,100 rpm |
| Fuel consumption | 1 L/h |
| Fuel tank capacity | 2.9 L |
- Fast starting due to a small pump to the carburetor
- Strong stroke for heavy, cohesive soils
- Integrated oil deficiency protection with automatic shutdown when the engine is started with insufficient oil level
- Premium air filter ensures an almost dust-free engine operation and provides three times longer change intervals
Comfortable transport
- Large and flexible transport lug
- Easy loading and stowing by transport rollers on the handle
1/min (rotation) / Operating hours
Innovative air filter system
- Operate three times longer in the optimum speed range than without compensation
- Three times longer service intervals
Not compensated
Compensated
Extension of the service-intervall

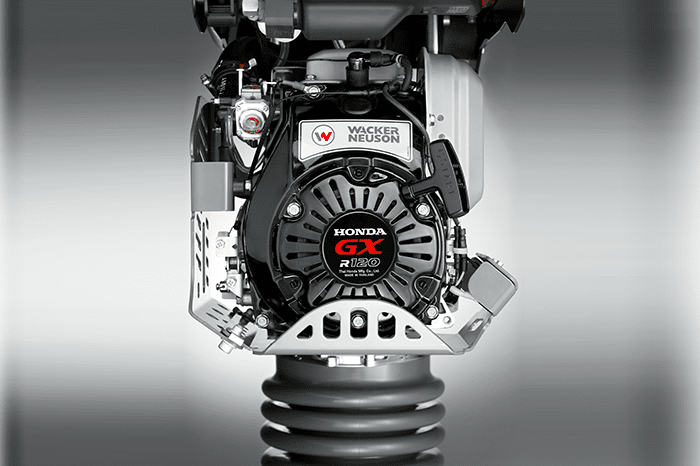

An engine with a strong reserve
The robust GXR 120 engine from Honda operates in normal operation well below its performance limit. This protects the engine and extends its service life.
Comfortable operation
- Only one lever for idling, starting and stopping
