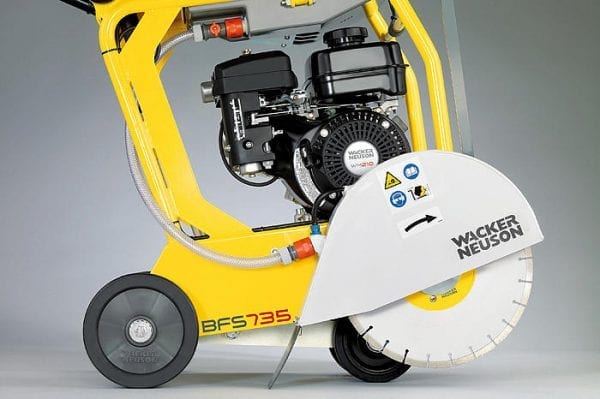

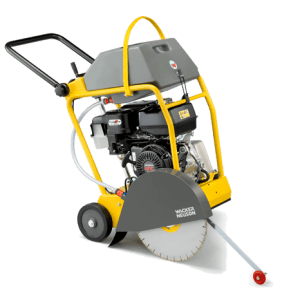

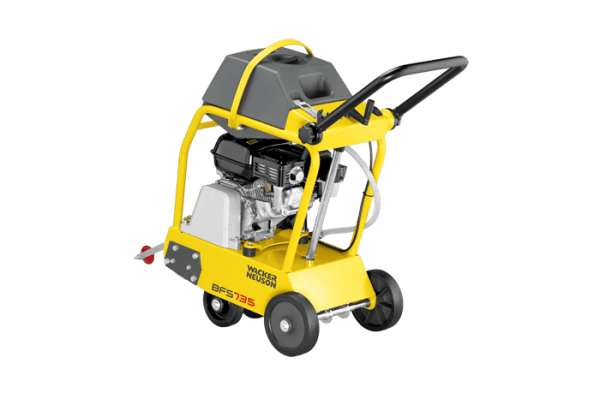

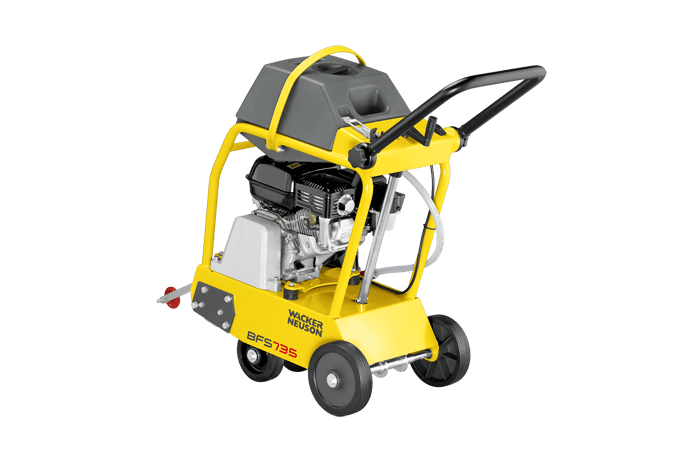

BFS735 – Floor Saw – Petrol

SKU 5100029228 Category Saws

The gasoline-driven floor saw series by Wacker Neuson is particularly characterized by its superior cutting performance. All model versions are up to 20 percent faster than comparable devices so that the BFS series offers the highest cutting speed with a quiet operation. This is because the torque that is transmitted to the diamond blade and the center of gravity that is above the cutting shaft are efficiently adapted to each other. And this with a low weight, because the BFS series is the lightest in its class.

– Low hand-arm-vibrations below 5 m/s².

– Superior cutting performance: Up to 20 % faster than comparable devices.

– Requires very little maintenance due to lifetime-lubricated bearings.

– High directional stability through the high tensile strength frame and ball-bearing wheels.

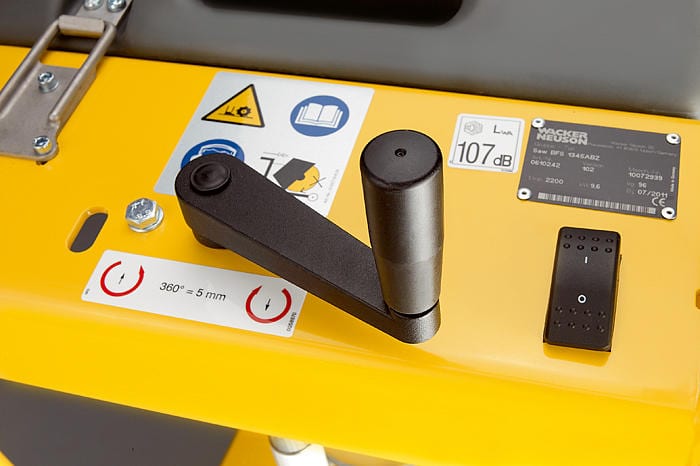

– Variably adjustable cutting depth.

Technical Specifications

	BFS735	BFS940	BFS1345	BFS1350
Dimensions with brackets in transport position, without guide wheel. L x W x H (mm)	830 x 488 x 880	840 x 575 x 1010	860 x 575 x 1010	890 x 575 x 1010
Weight (kg)	69	86	93	94
Blade diameter max. (mm)	350	400	450	500
Blade arbor (mm)	25.4	25.4	25.4	25.4
Cutting depth max. (mm)	120	145	170	195
Nominal speed the blade (rpm)	2,500	2,200	2,200	2,200
Water tank capacity (L)	20	32	32	32
Engine / Motor manufacturer	Honda	Honda	Honda	Honda
Engine / Motor type	GX 200	GX 270	GX 390	GX 390
Displacement (cm³)	196	270	389	389
Power (kW)	4.3	6.3	8.7	8.7
at rpm	3,600	3,600	3,600	3,600
Fuel type	Petrol	Petrol	Petrol	Petrol
Fuel consumption L/h	1.7	3	4.3	4.3
Fuel tank capacity (L)	3.1	5.3	6.1	6.1

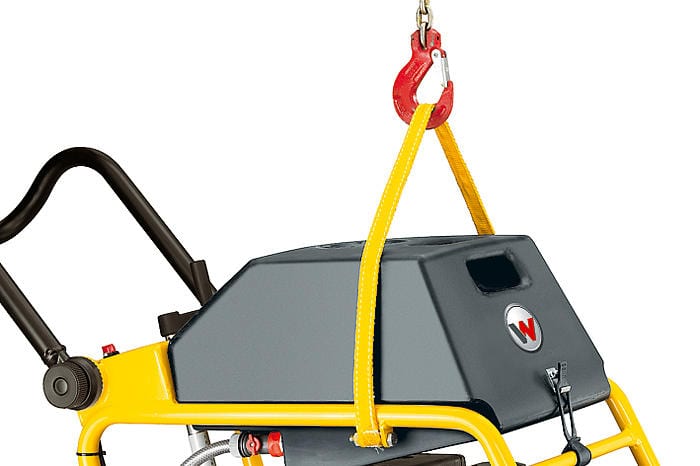

	Central lifting point The machine always remains balanced when lifted by the central lifting point. This ensures that the rear wheels always touch the ground first and not the cutting blade.

	Water Tank The BFS-series has the largest water tank in its class. BFS735 – 20 liter BFS940, BFS1345 and BFS1350 – 32 liter

	Optional transportation handle Makes the transport of the machine easy and user friendly.

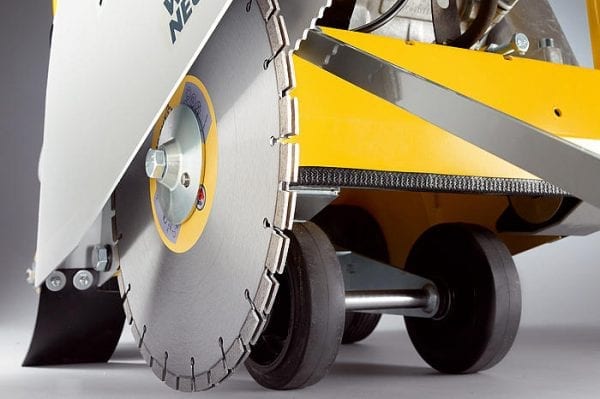

	Wide wheelbase More stability in operation.
