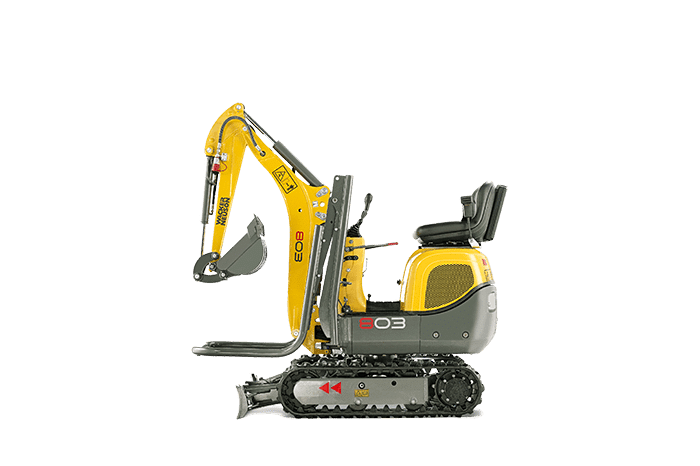

803RD Tracked Excavator

SKU 1000145618.01 Category Tag

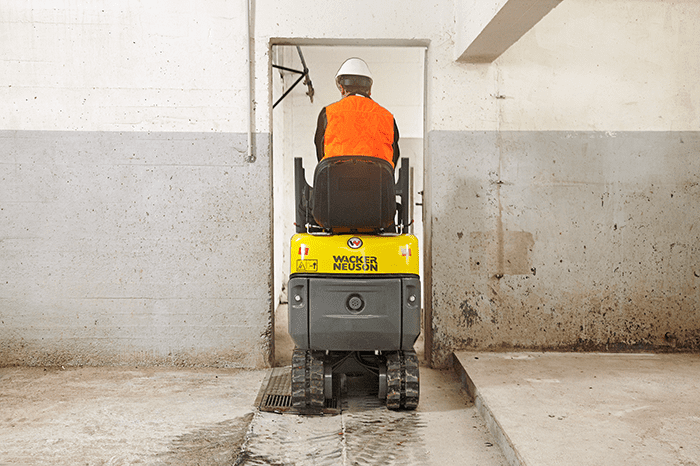

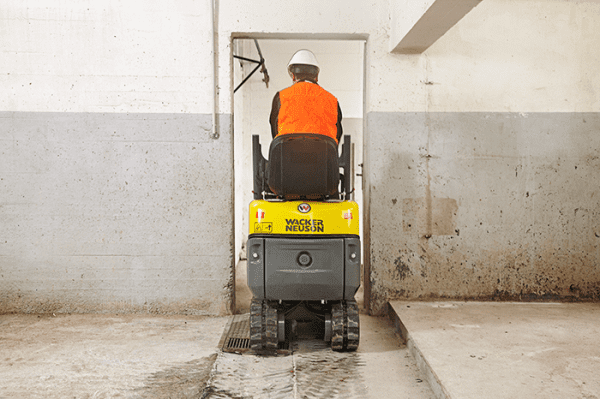

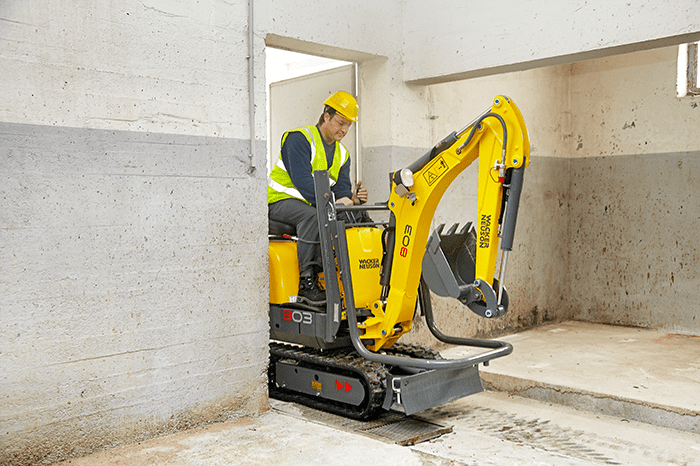

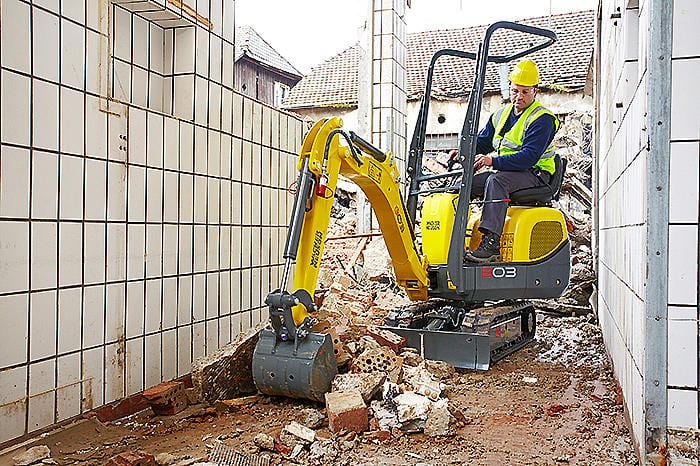

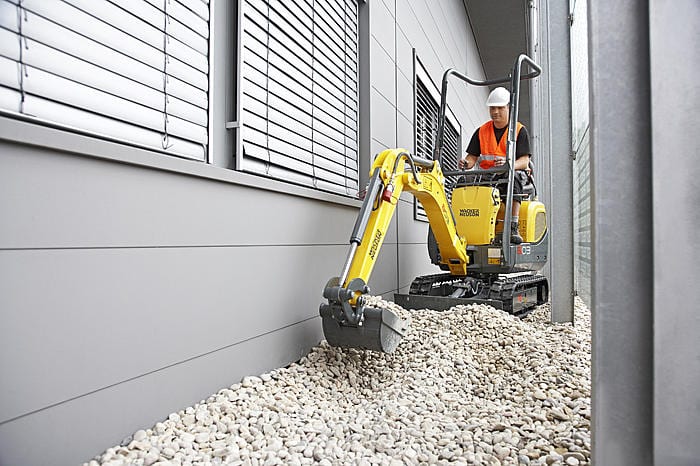

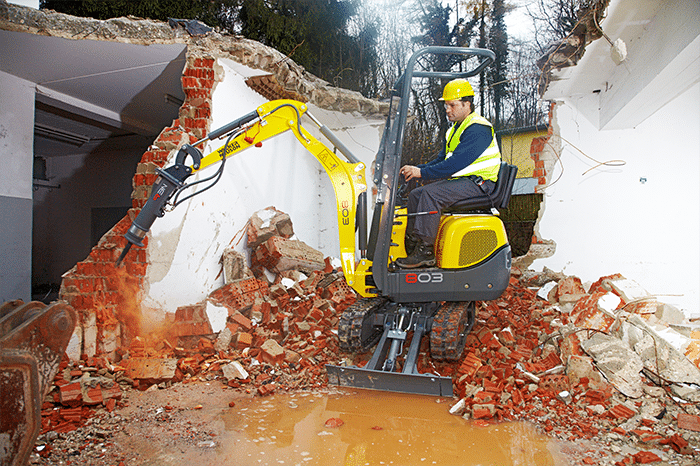

The 803 is the smallest Wacker Neuson excavator – but what it lacks in size, it makes up in strength. Its compact size, at just 700 mm wide, makes it ideal for demolition and renovation work within buildings. The rubber tracks do not damage floors and it can easily drive through internal doors. Hydraulic functionality has been given particular attention. The standard auxiliary hydraulics permits the operation of various hydraulic attachments, such as the perfectly matched Wacker Neuson hydraulic hammer.

– A truly professional performance: The tried and tested 3-cylinder diesel engine is a veritable powerhouse; efficient, economical and reliable.

– One-way auxiliary hydraulics is a standard feature: Ideal for operating the perfectly matched Wacker Neuson hydraulic hammer

– The folding dozer blade always stays connected to the machine and can never be lost.

– The extended hydraulic telescopic chassis with an 860 mm external width gives added stability. It can be retracted to a width of 700 mm in no time at all.

– Extremely robust design.

Operating data

Operating weight1,029 – 1,089 kg
Biting force max.4.5 kN
Breakout force max.8.9 kN
Digging depth max.1,763 mm
Dumping height2,012 – 2,035 mm
Digging radius max.3,090 mm
Superstructure slewing speed8 rpm
Dimensions (L x W x H)2,828 x 700 x 2,261 mm

Engine / Motor

Engine / Motor manufacturerYanmar
Engine / Motor model3TNV70
Engine / Motor typeWater-cooled 3-cylinder diesel engine
Displacement854 cm³
Operating speed2,100 rpm
Engine performance acc. to ISO9.6 kW
Battery20 Ah
Tank capacity7 L

Hydraulic system

Duty pump2 gear pumps
Max. flow rate10.7 + 10.7 L/min
Operating pressure for working and traction hydraulics170 bar
Operating pressure slewing gear70 bar
Revolving superstructure speed8 rpm
Hydraulic oil tank14 L

Undercarriage

Travel speed1.8 km/h
Chain width180 mm
Ground clearance132 mm

Dozer Blade

Width min.700 mm
Height200 mm

Sound level

Sound level (LwA) acc. to 2000/14/EC93 dB(A)

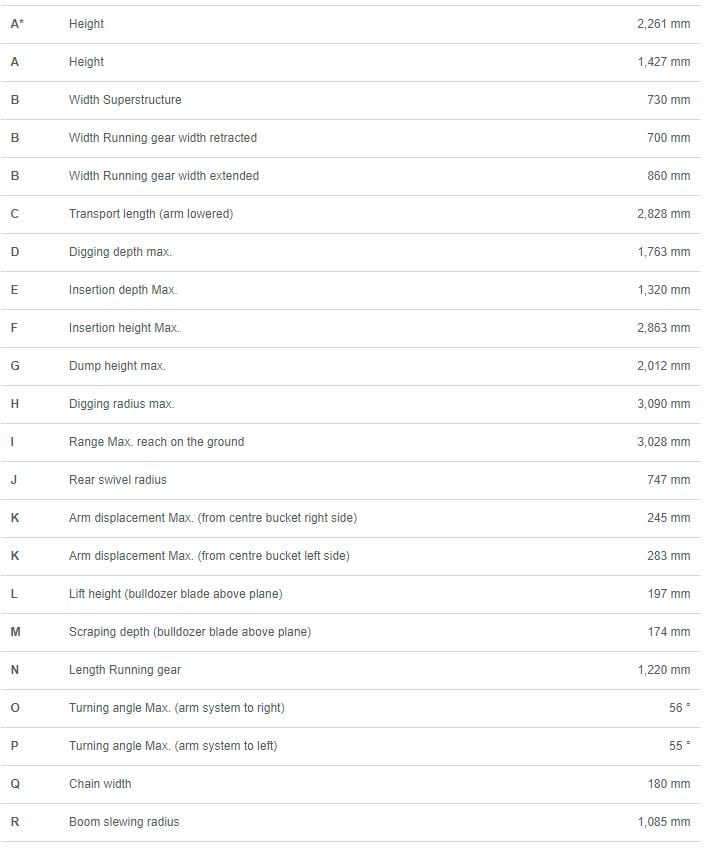

Dimensions
